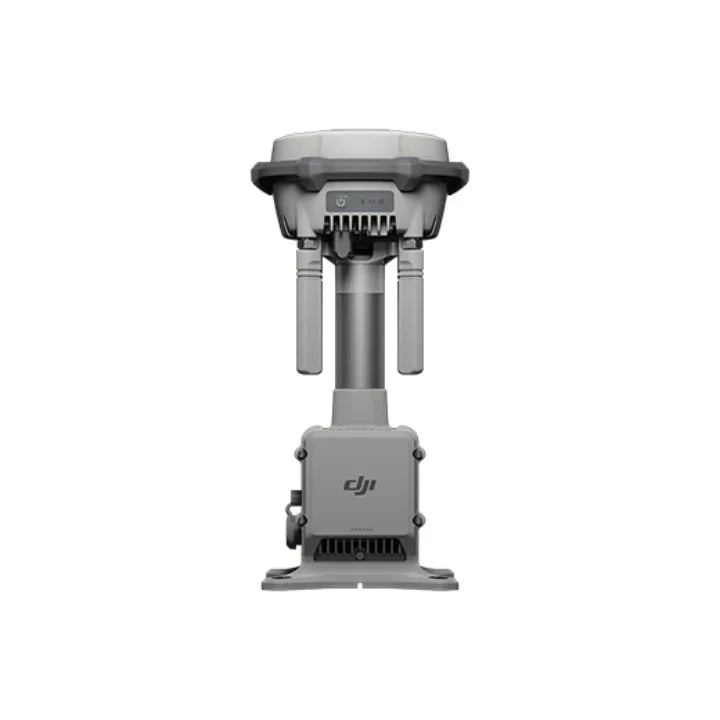

DJI D-RTK 3 Relay Fixed Deployment Version for Dock 3

DJI D-RTK 3 Relay Fixed Deployment Version for Dock 3: Fixed RTK relay solution for extended Dock operations

The DJI D-RTK 3 Relay Fixed Deployment Version is a specialized relay station designed exclusively for DJI Dock 3 deployments requiring extended communication range and reliable RTK positioning. Operating only in relay mode, it bridges signal gaps caused by terrain, structures, or interference while supporting centimeter-level positioning accuracy. Powered by Power-over-Ethernet and built for permanent installation, it integrates directly with Dock 3 for simplified setup. With IP67 protection and remote relay access capability, it supports continuous enterprise operations in demanding environments.

DJI D-RTK 3 Relay Fixed Deployment Version for Dock 3 system highlights

• Relay-only functionality optimized for Dock 3 environments.
• Extended communication coverage improves operational safety and reliability.
• Centimeter-level RTK support for high-accuracy missions.
• O4 Enterprise relay transmission enhances link stability.
• Elevated installation support for improved signal propagation.
• Direct Dock 3 integration via dedicated connection port.
• Remote discovery enables automatic aircraft relay connection.
• Designed for continuous unattended operation.

Built for fixed infrastructure and long-term deployment

This fixed deployment version is engineered for permanent or semi-permanent installation as part of a Dock 3 ecosystem. By focusing exclusively on relay operation, it simplifies configuration and ensures consistent performance once deployed. Power-over-Ethernet reduces installation complexity and supports long-distance cable runs. These design choices allow operators to place Dock 3 systems in locations previously constrained by connectivity limitations, expanding operational coverage without increasing system management overhead.

Environmental protection and reliability for critical missions

Designed to remain deployed outdoors, the D-RTK 3 Relay Fixed Deployment Version features IP67-rated protection and lightning surge resistance. DJI specifies operation from −30° to 50° C (−22° to 122° F), supporting continuous use in varied climates. Its redundant design reduces maintenance requirements, making it suitable for mission-critical deployments such as emergency response, infrastructure monitoring, and persistent surveillance operations.

Compatibility and deployment requirements

• DJI Dock 3: Exclusive compatibility.
• Operating mode: Relay station only.
• Power supply: Power-over-Ethernet from Dock 3 or supported PoE sources.
• Deployment type: Fixed, elevated outdoor installation.

Operational scenarios supported by relay deployment

• Dock 3 automation: Extend communication for autonomous dock-based missions.
• Urban inspection operations: Maintain links around buildings and structures.
• Infrastructure monitoring: Support stable communication in complex environments.
• Emergency response readiness: Ensure reliable connectivity during critical events.
• Remote installations: Enable Dock deployments in challenging locations.
• Industrial facilities: Improve signal reliability across large operational sites.
• Obstructed terrain missions: Bridge communication gaps caused by obstacles.
• Persistent operations: Maintain always-on relay availability.

Designed for enterprise Dock infrastructure

The D-RTK 3 Relay Fixed Deployment Version is intended as a permanent infrastructure component within DJI’s Dock ecosystem. Its ability to support remote access and automatic relay discovery reduces operational friction, while its rugged design ensures reliability over long deployment periods. When paired with Dock 3, it enables scalable, resilient drone operations where communication continuity and positioning accuracy are essential.

The DJI D-RTK 3 Relay Fixed Deployment Version strengthens Dock 3 deployments with reliable relay and RTK support.

Order from Dronefly today — the West Coast’s trusted enterprise UAV source for DJI Dock infrastructure solutions.
