Specifications
|
Model
|
FS15V
|
FS25V
|
FS30V
|
|
Voltage
|
220‑240 V
|
220‑240 V
|
220‑240 V
|
|
Frequency
|
50‑60 Hz
|
50‑60 Hz
|
50‑60 Hz
|
|
Max. Current
|
0.6‑5.0 A
|
0.6‑8.5 A
|
0.6‑10.0 A
|
|
Horsepower
|
1.5 HP
|
2.5 HP
|
3.0 HP
|
|
Motor Speed Range
|
450‑3,450 RPM
|
450‑3,450 RPM
|
450‑3,450 RPM
|
|

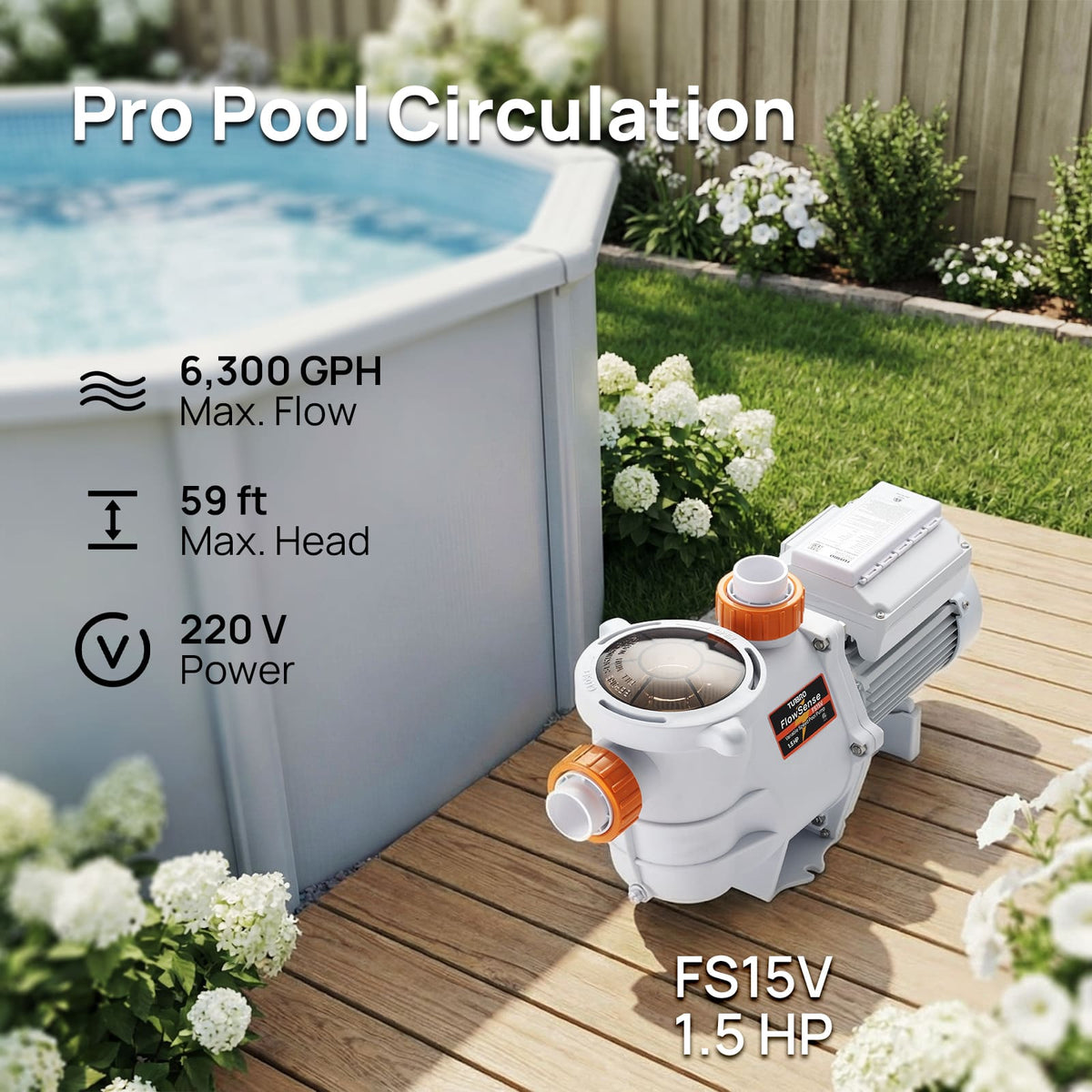

Max. Flow Rate
|
105 GPM
|
114 GPM
|
145 GPM
|
|
Max. Head
|
59 ft
|
82 ft
|
82 ft
|
|
Max. Water Temp
|
104 °F
|
104 °F
|
104 °F
|
|

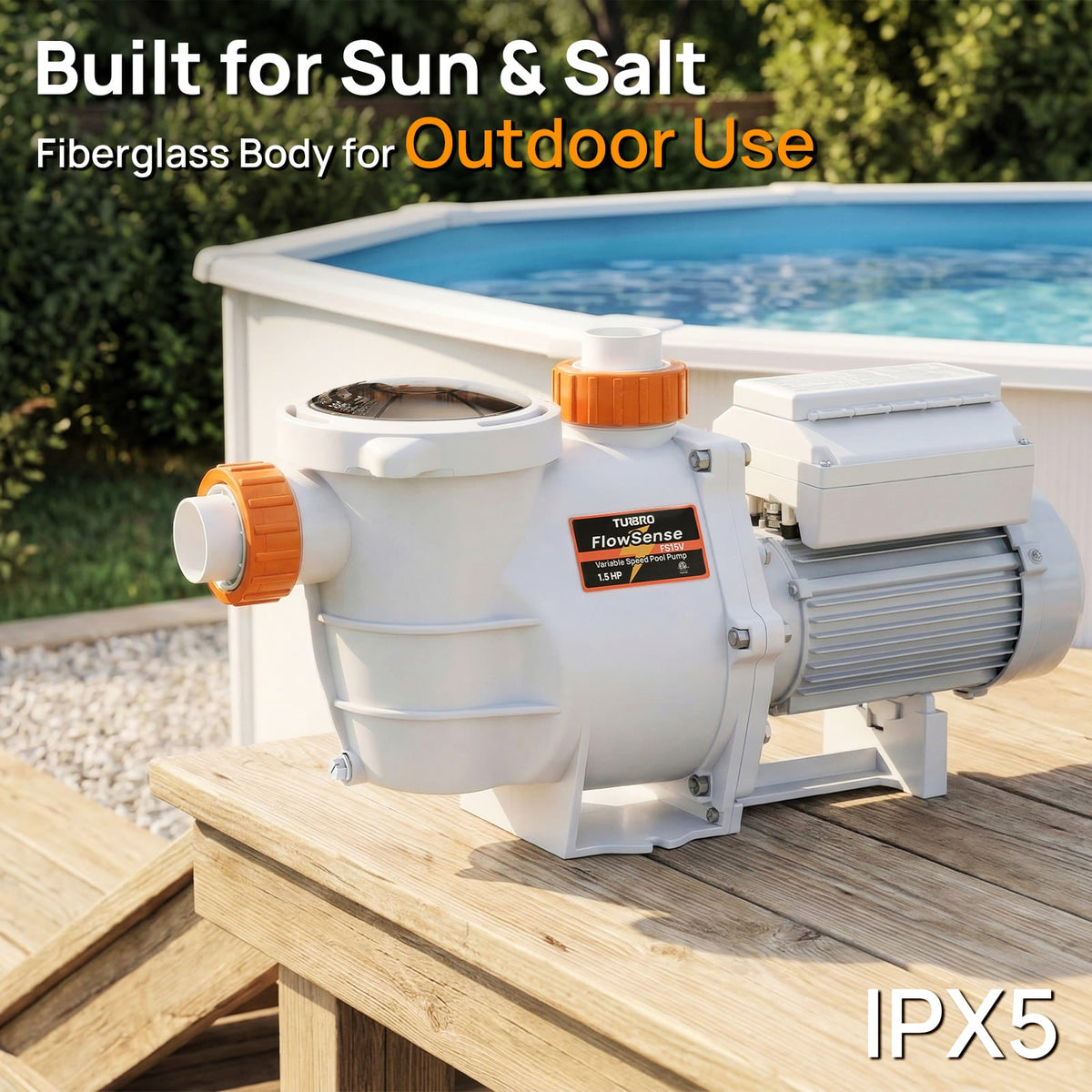

Protection / Insulation
|
IPX5/Class F
|
IPX5/Class F
|
IPX5/Class F
|
FAQ
Q: Can I install a pool pump myself?
A: It is highly recommended that this product be installed and serviced by a pool professional.

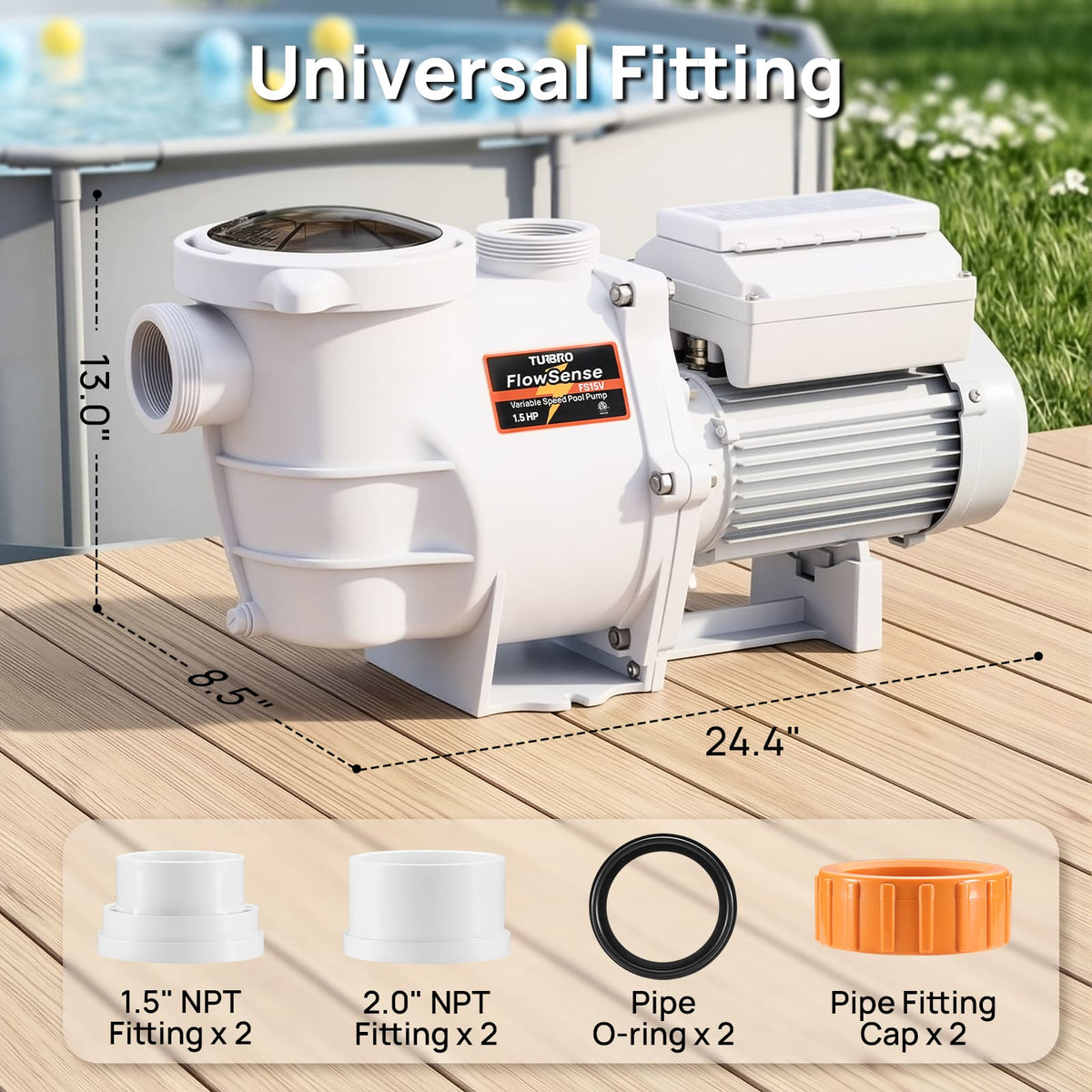

Q: Does it fit standard pipes?

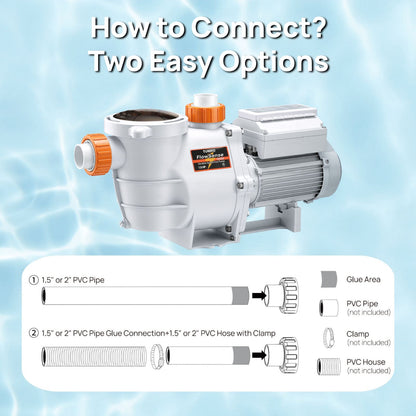

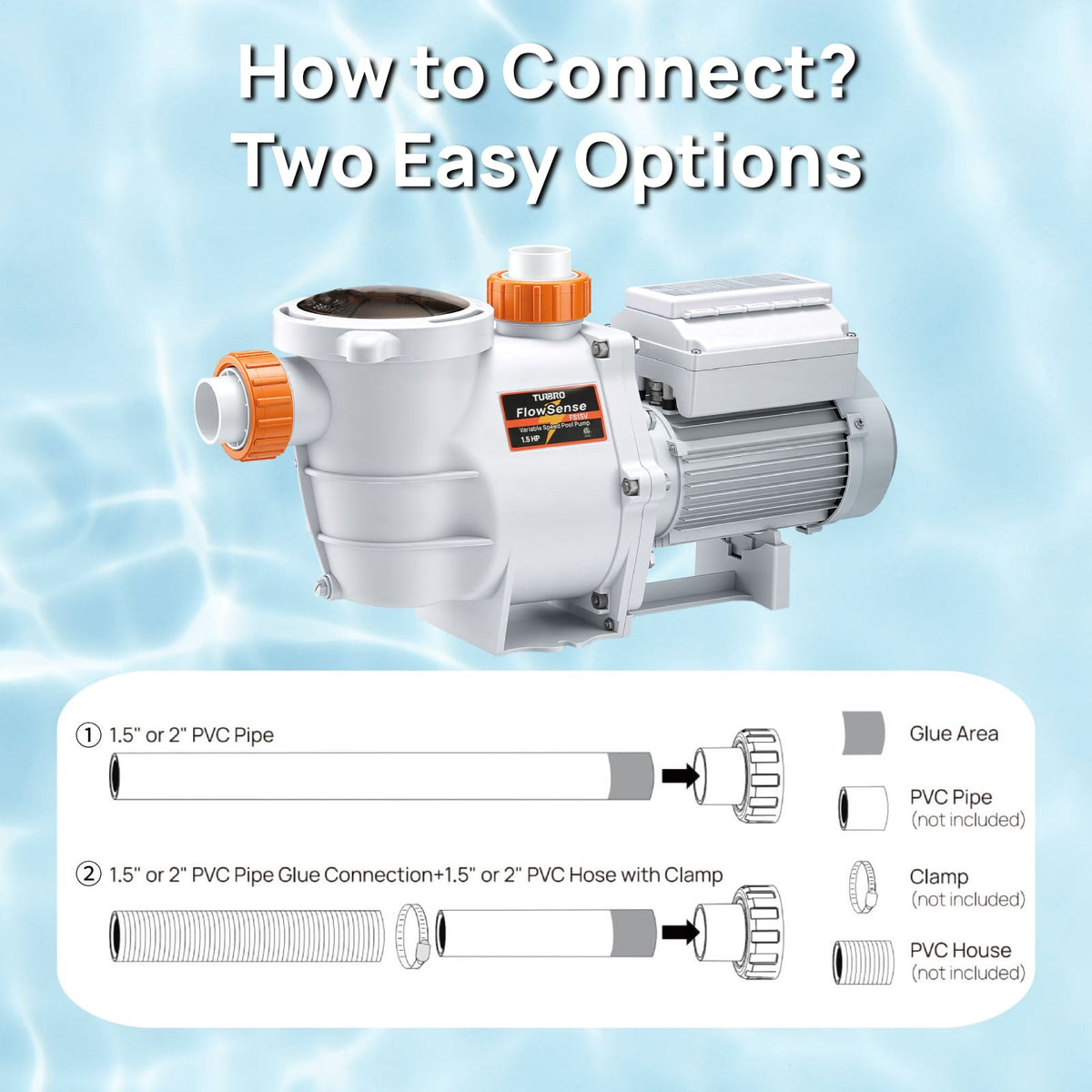

A: The pump comes with both 1.5" and 2.0" NPT adapters so it is compatible with your existing 1.5" or 2.0" pool pipings. Glue connections, PVC hoses and clamps are not included.
Q: Can this pump handle heavy debris?
A: The internal strainer basket is designed to trap hair, leaves, and twigs before they reach the impeller. The transparent "clear-view" lid lets you check if it is full without opening the system.

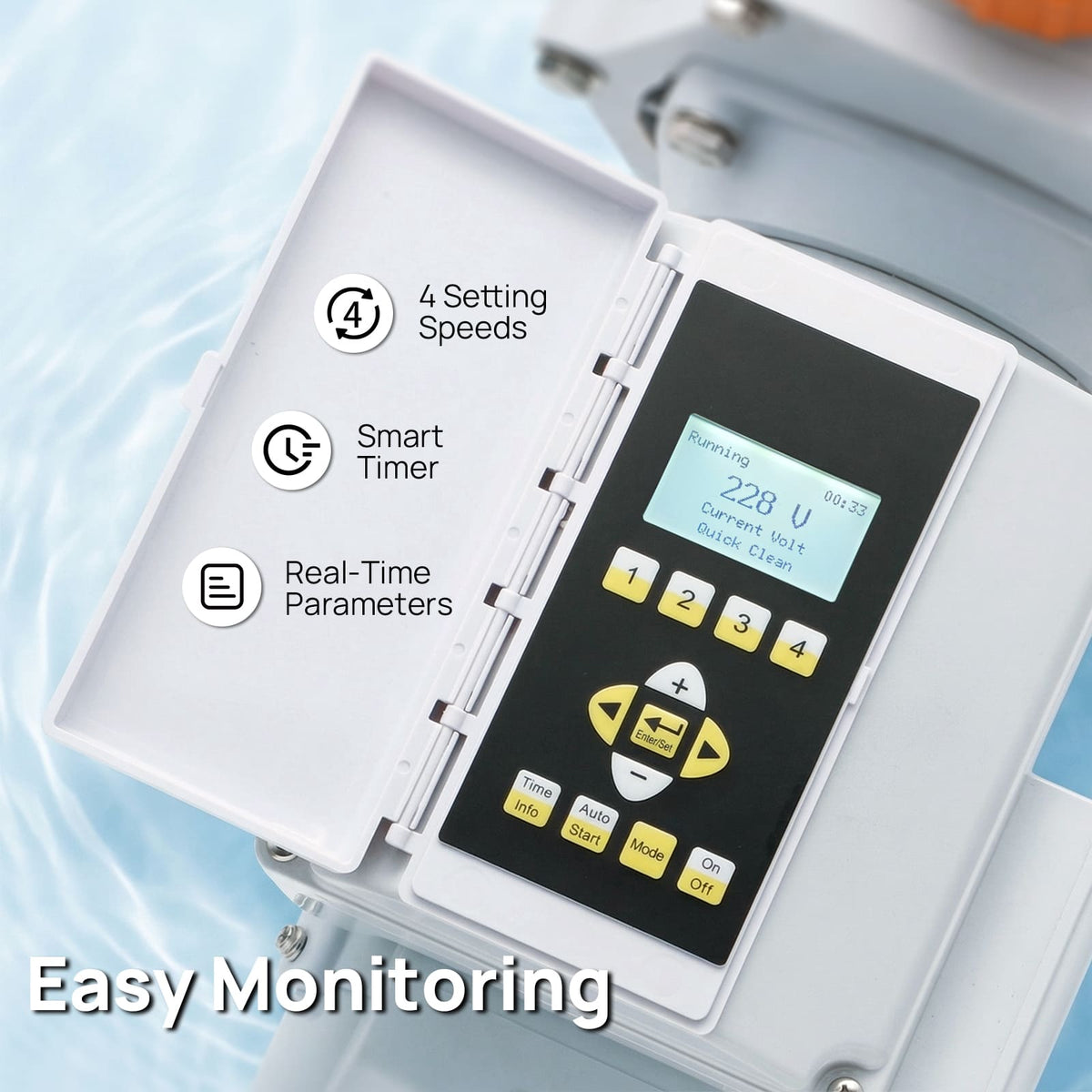

Q: Can I customize the operation?
A: The intuitive screen allows you to set custom schedules easily. You can choose from four speeds for high-flow vacuuming or low-speed, whisper-quiet filtration. Auto-start, manual mode, quick clean modes are available.
