Specification
- Power Supply: 12 V DC
- Inverter Compressor: Yes
- Cooling: 4,500-12,000 BTU
- Rated Power of Cooling: 180-600 W
- Rated Current of Cooling: 15-50 A
- Ambient Temp.: 61-131℉
- Color: White/Black
- Min. Circuit Ampacity: 60 A
- Max. Circuit Protection: 100 A
- Refrigerant: R32

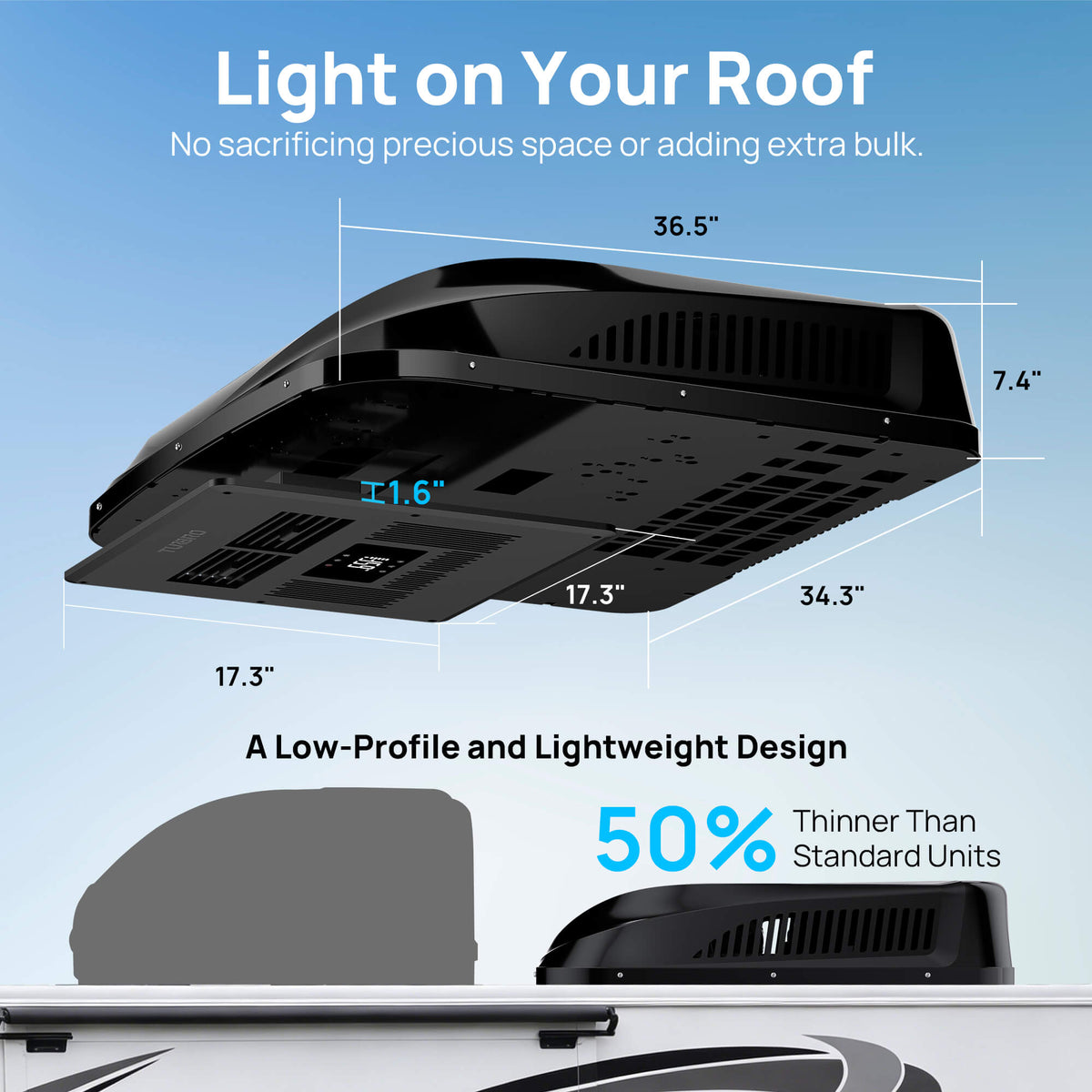

- Rooftop Unit Dimensions: 34.3”(W) x 36.5”(D) x 7.4”(H)
- Rooftop Unit Weight: 61.2 lb
- Indoor Unit Dimensions: 17.3”(W) x 17.3”(D) x 1.6”(H)
- Indoor Unit Weight: 2.0 lb
FAQ
Q: Can I run this AC while driving my RV?

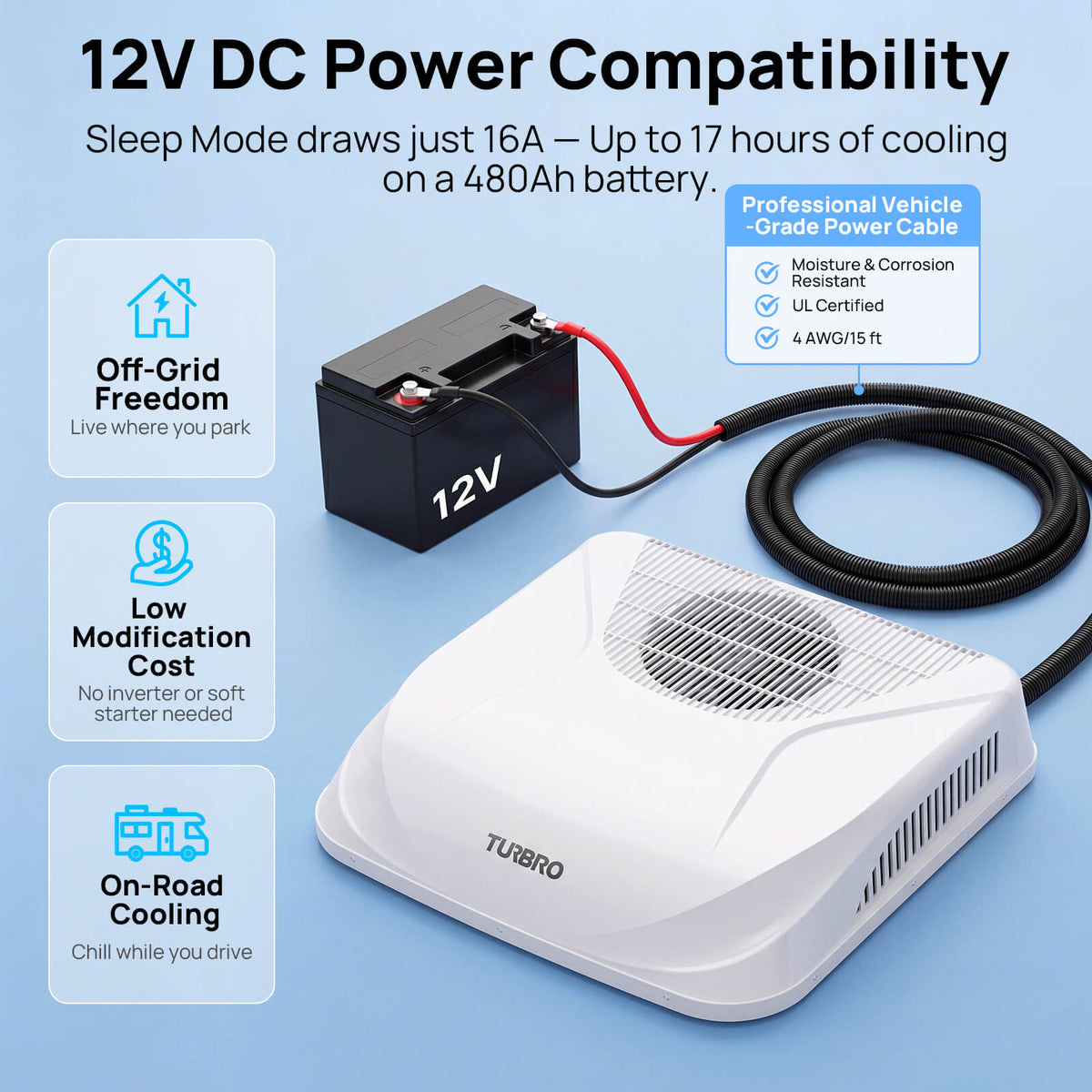

A: Yes. Since it runs directly on 12V DC power, you can keep it running during transit without an inverter, provided your battery system has sufficient capacity and charging support.
Q: How much battery capacity do I need?
A: We recommend a 300 Ah or larger battery bank. With a 480 Ah battery, our energy-efficient inverter system provides approximately 8 to 10 hours of operation. In ECO or Sleep mode, the system intelligently adjusts compressor speed for longer operation.
Q: Will it fit my RV?

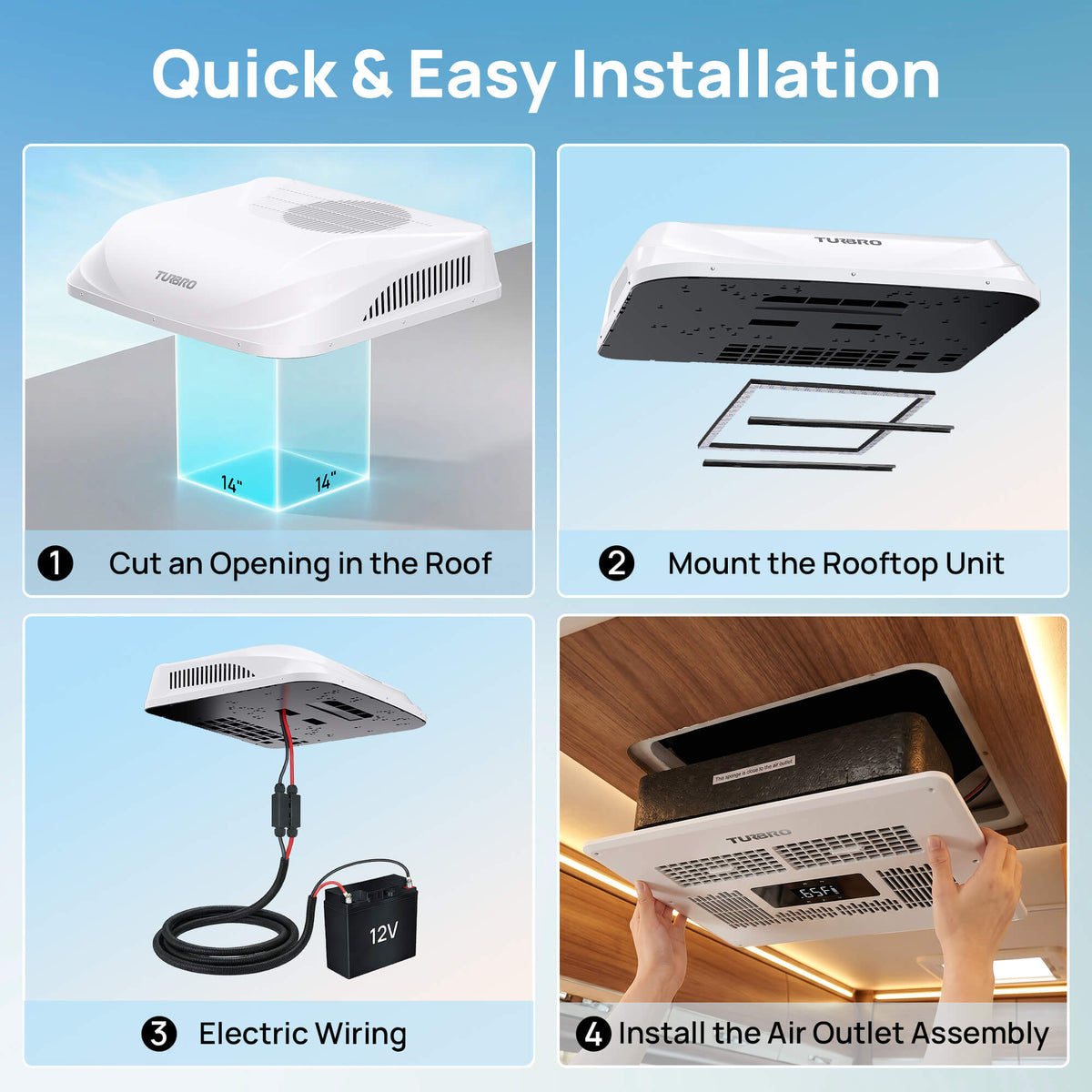

A: The Greenland 12V RV AC is designed for versatile fitment such as Class B vans, truck campers, and mini trailers. Model GLD09 needs 12-14" x 14" rooftop openings, while GLD12 needs standard 14" x 14" openings.
Q: How quiet is the unit?

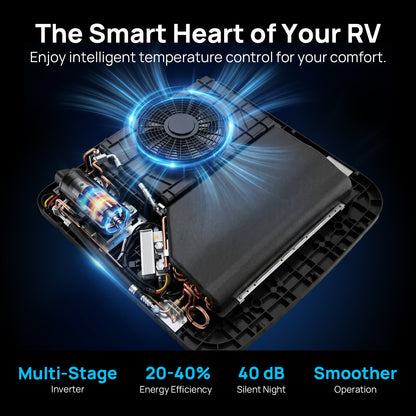

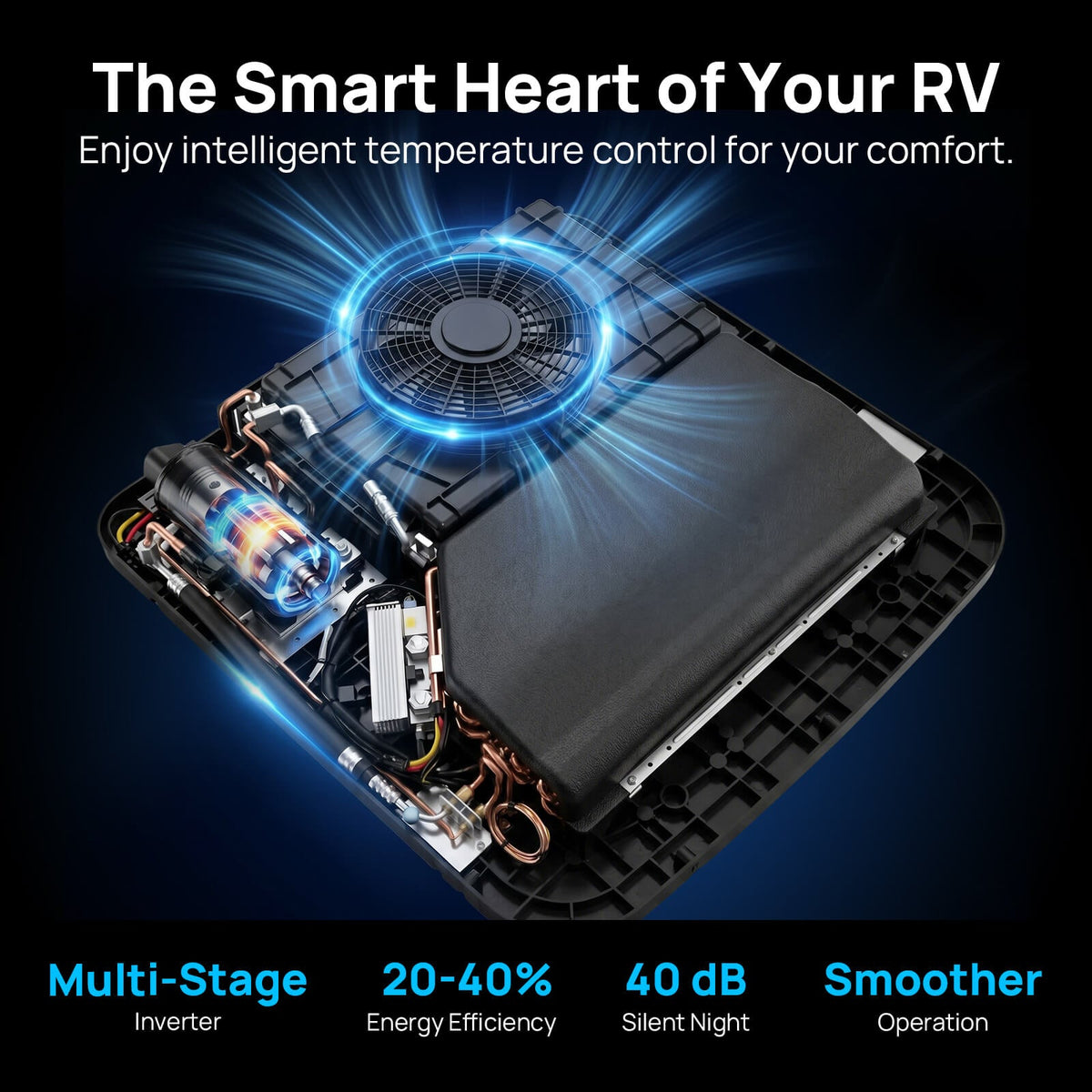

A: By combining a twin rotary inverter compressor with a dual vibration-dampening structure, this unit operates as quietly as 40 dB in sleep mode for restful nights.
Q: Do I need ductwork?

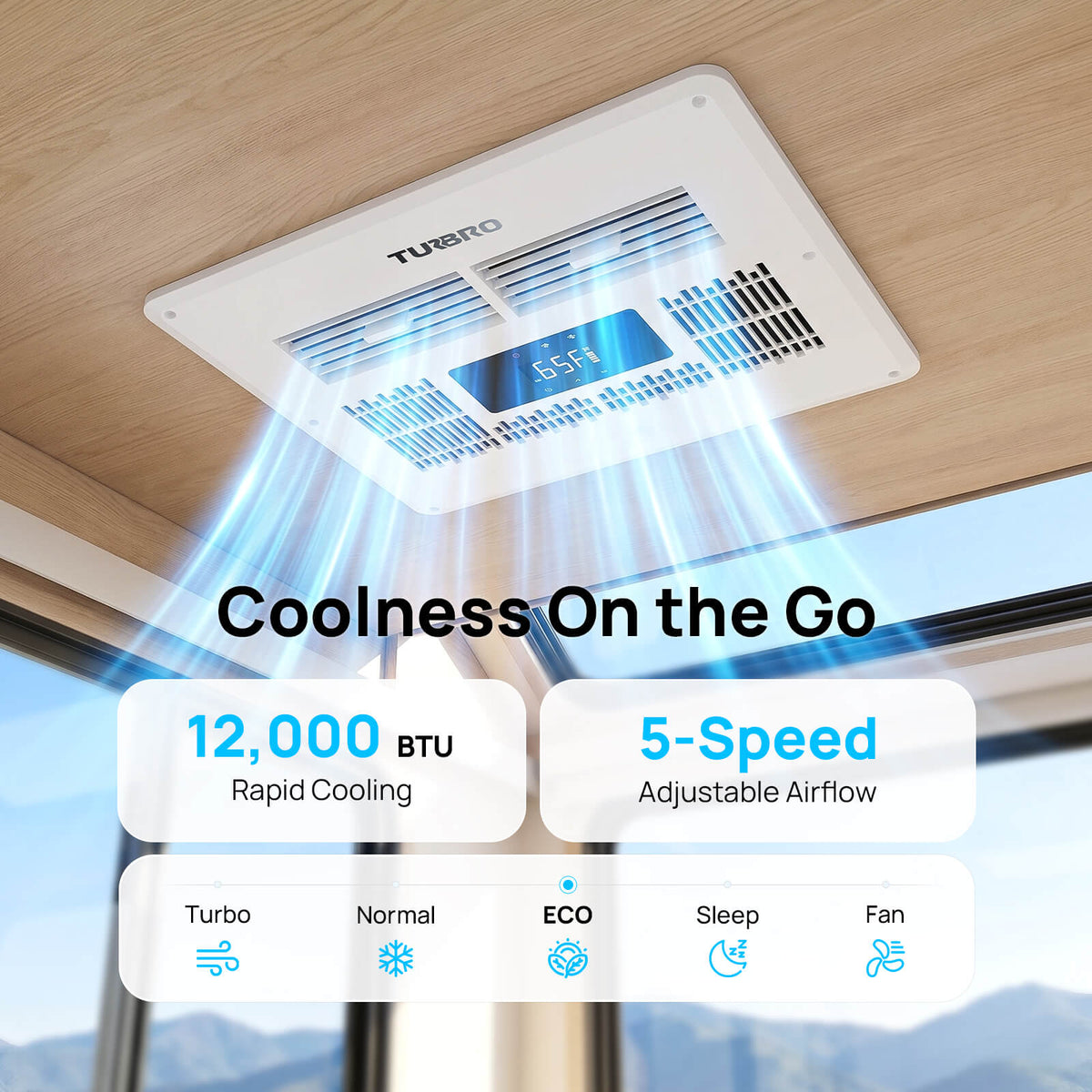

A: No ducting is required. This is a non-ducted rooftop unit that blows air directly from the indoor unit. This simplified design ensures maximum airflow efficiency and a much easier installation for setups.
Q: Can I run the wiring externally for my truck?
A: Yes, the casing includes pre-drilled ports for external routing. This requires opening the shell to adjust cables. We recommend professional installation or consulting our support for guidance.
