H-Flow High-Pressure Pump H5-5S
H-Flow High-Pressure Pump H5-5S
Regular price
$1,969.99 USD
Regular price
Sale price
$1,969.99 USD
Quantity
Couldn't load pickup availability
Share
Product Description
The H-Flow High-Pressure Pump H5-5S is a compact and efficient solution designed to enhance water pressure in residential, commercial, and light industrial applications. With its durable construction and reliable performance, this pump is perfect for applications requiring consistent water flow and pressure boosting.
###

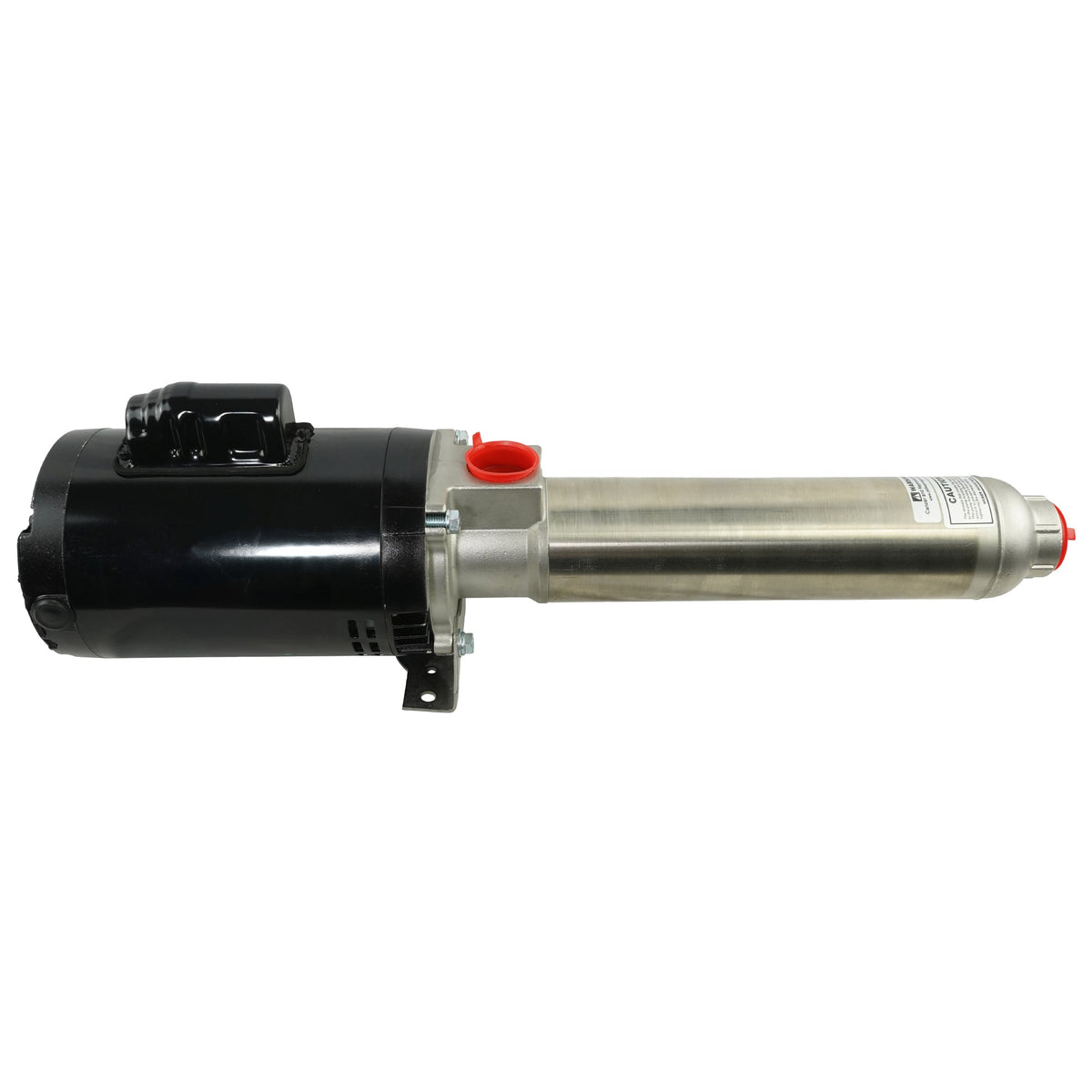

H-Flow High-Pressure Pump H5-5S
Cast Iron – 5 GPM – 5 Stage – .5 HP
| Technical Specifications | |
|---|---|
| Model | H-Flow High-Pressure Pump H5-5S |
| Nominal Flow Rate | 5 GPM |
| Stages | 5 |
| Motor RPM | 3500 RPM |
| Motor Frame | 56J (C-Face) |
| HP Rating | .5 HP |
| Phase / Hertz | 1 PH / 60 Hz |
| Inlet | 1″ FNPT |
| Dimensions (A x B) | 11.03″ x 10.13″ |
###
Construction & Design Features
| Component | Description |
|---|---|
| Inlet / Motor Bracket | Cast Iron |
| Discharge Housing | Cast Iron |
| Pump Housing | 304 Stainless Steel Tube |
| Impellers | Thermoplastic |
| Diffusers | Thermoplastic |
| Wear Rings | 316 Stainless Steel |
| Shaft & Coupling | 316 Stainless Steel |
| Mechanical Seal | Carbon/Ceramic |
| O-Rings | Buna-N |
###
Installation Instructions
-
Preparation:
- Ensure the installation site is clean, dry, and has sufficient ventilation.
- Verify that the power supply matches the pump's electrical requirements (.5 HP motor, 60 Hz, 3500 RPM).
- Ensure all piping and fittings are compatible with the pump's inlet and discharge sizes (1" NPT).
-
Mounting:
- Secure the pump on a stable, level surface to prevent vibrations during operation.
- If the pump has a support bracket (14+ stages), ensure it is mounted approximately 4 inches from the discharge for added stability.
-
Piping Connections:
- Connect the suction pipe to the inlet, ensuring an airtight seal to prevent cavitation.
- Connect the discharge pipe to the outlet, ensuring proper alignment to avoid stress on the pump housing.
- Install a check valve and isolation valves on both the suction and discharge lines for easy maintenance.
-
Electrical Connection:
- Use a certified electrician to connect the pump to the power source.
- Follow all local electrical codes and guidelines for safety.
- Ensure the motor is properly grounded.
-
Priming the Pump:
- Fill the pump casing with water through the priming port to eliminate air pockets.
- Ensure all air is purged from the suction line.
-
Testing:
- Turn on the pump briefly to check for proper rotation (refer to the motor manual).
- Inspect all connections for leaks or vibrations.
- Run the pump at full capacity and monitor for stable operation.
-
Maintenance Tips:
- Regularly inspect the pump for wear or leaks.
- Clean or replace the mechanical seal and wear rings as needed.
- Follow the manufacturer's maintenance schedule for optimal performance.
