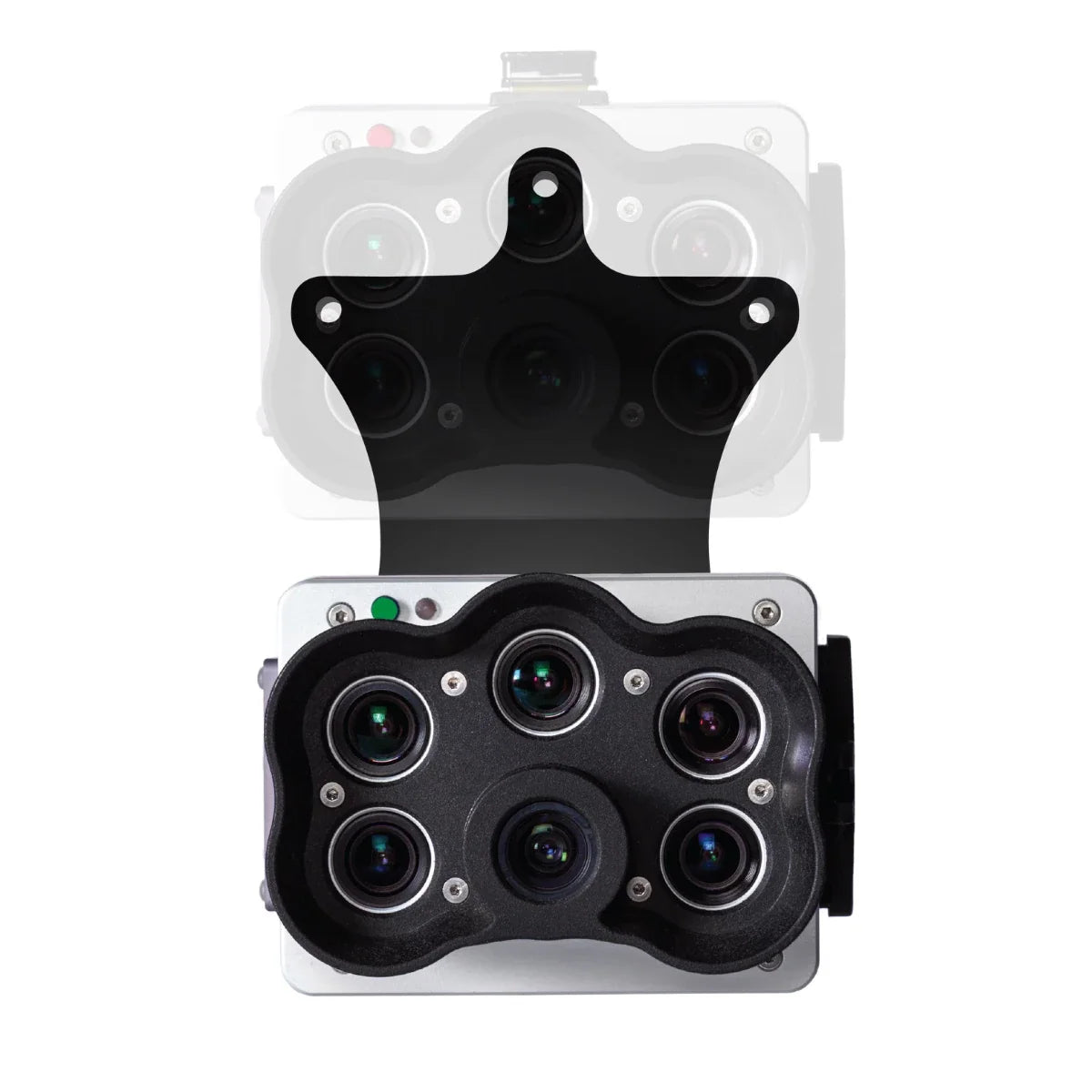

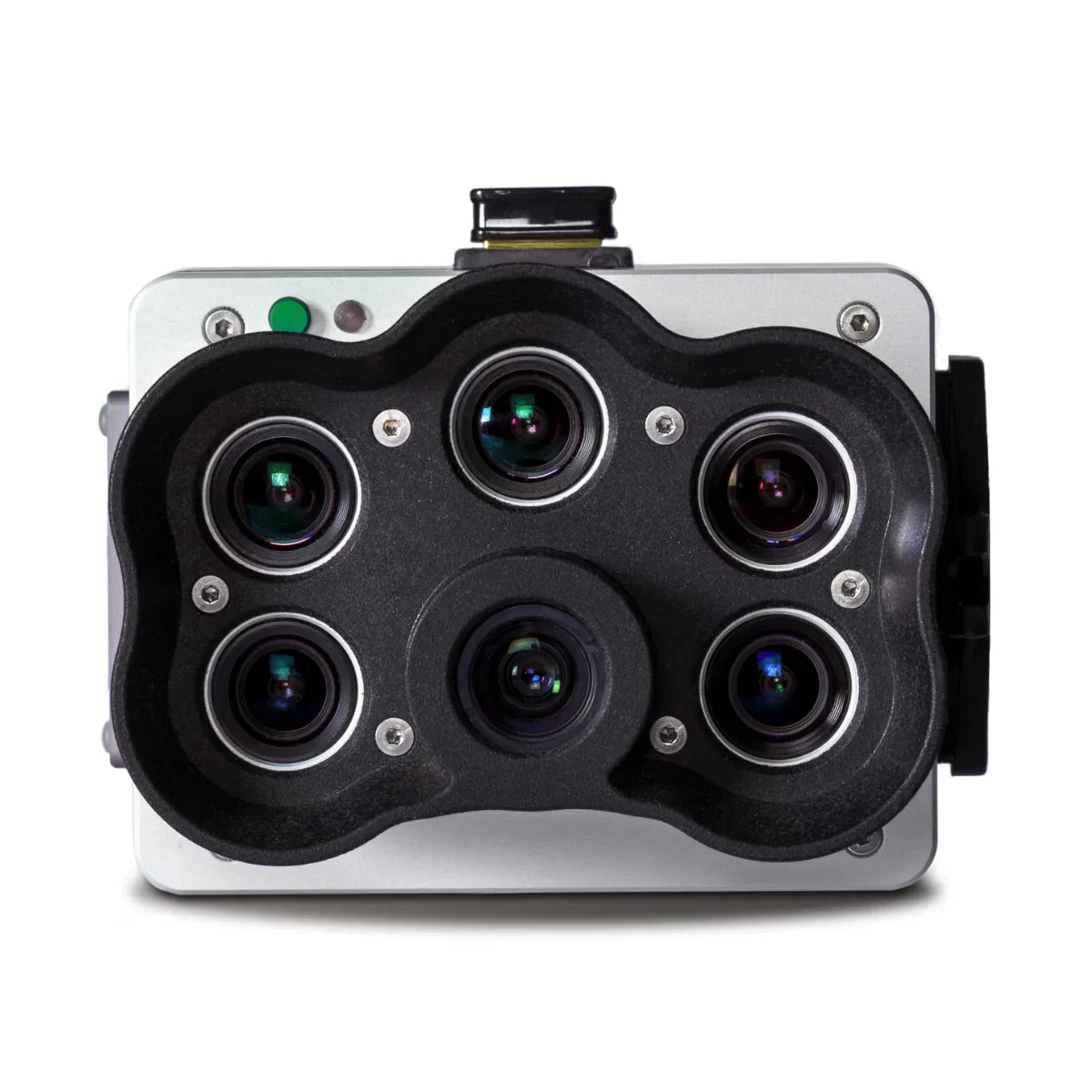

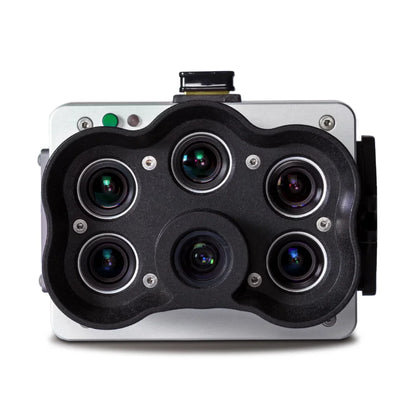

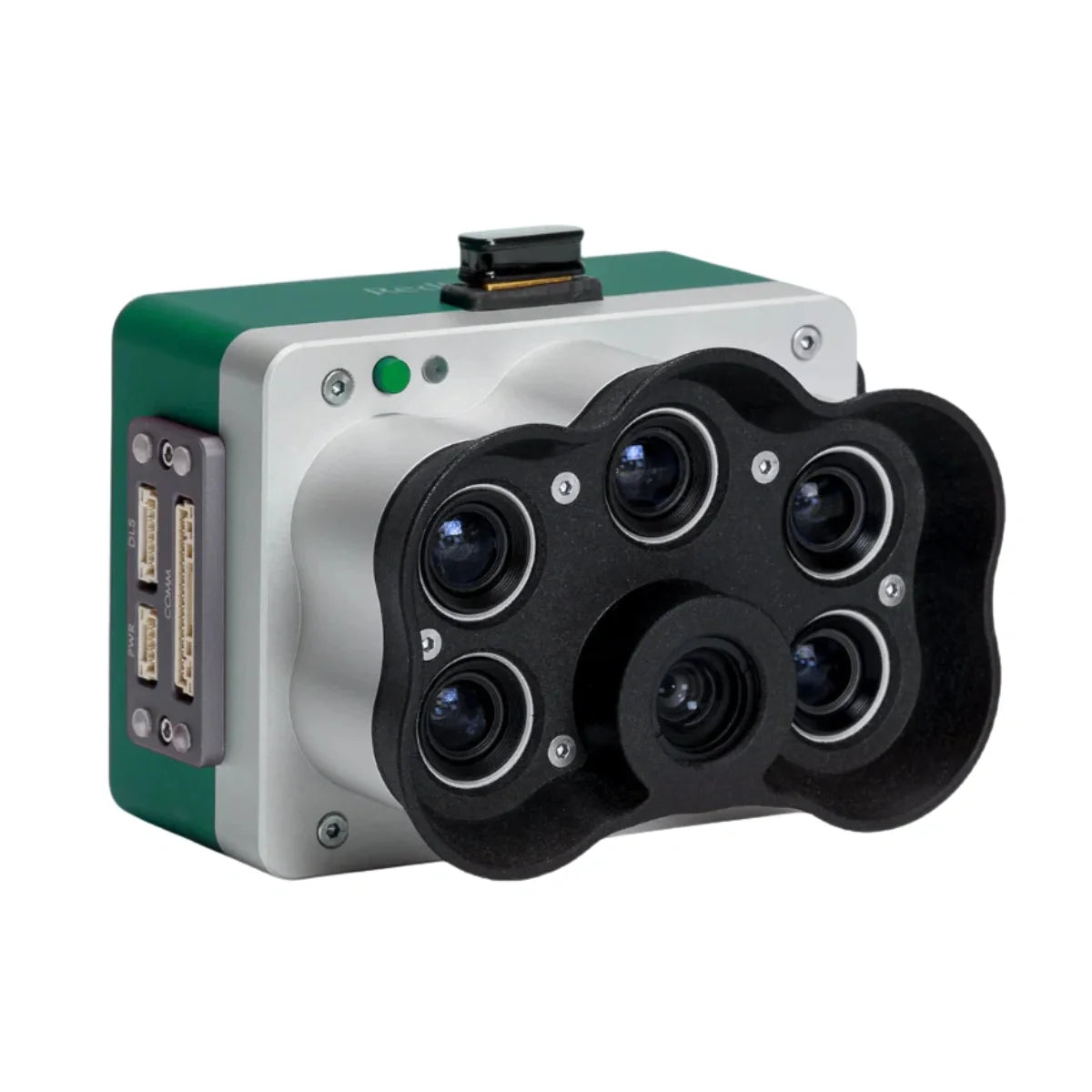

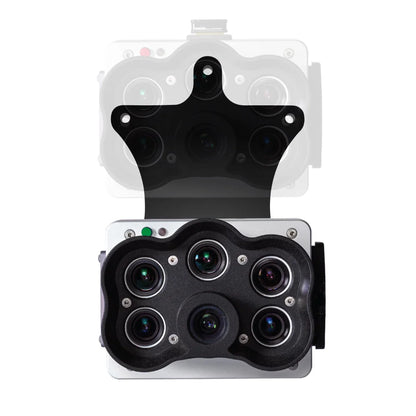

MicaSense RedEdge-P Green Multispectral Kit

MicaSense RedEdge-P Green Multispectral Kit: pigment-sensitive multispectral analytics for enterprise research

The MicaSense RedEdge-P Green Multispectral Kit supports enterprise research teams performing advanced agronomy, ecology, and vegetation physiology analysis. As a standalone multispectral sensor, it captures five pigment-sensitive spectral bands using global shutter imaging to reduce motion distortion during survey flights. This configuration supports indices used for pigment and stress analysis, enabling refined physiological insight beyond standard vegetation metrics. Designed within the modular RedEdge-P camera ecosystem, the RedEdge-P Green can operate independently or scale into expanded spectral configurations when paired with compatible RedEdge-P family cameras.

Core features at a glance

• Pigment-focused multispectral bands support physiological vegetation analysis
• Cyan and yellow bands enable advanced pigment index workflows
• Global shutter imaging reduces motion distortion during aerial surveys
• Panchromatic band supports pan-sharpening with post-processing workflows
• RGB output aligned with multispectral bands supports mapping deliverables
• Raw DNG capture preserves analytical data fidelity
• Capture rates up to three frames per second improve efficiency
• Modular design supports dual or triple configuration expansion

Image quality and spatial resolution

The RedEdge-P Green Multispectral Kit captures 1456 × 1088 pixels per multispectral band with a 2464 × 2056 panchromatic band and a 5.1 MP RGB output aligned to all bands. At 120 m (approximately 400 ft) AGL, published references include 7.7 cm (3 in) multispectral ground sample distance and 3.98 cm (1.5 in) panchromatic ground sample distance. With appropriate post-processing, pan-sharpening can achieve up to 2 cm (0.8 in) per pixel detail for fine-scale vegetation analysis.

Spectral outputs and expandable analytics

The RedEdge-P Green configuration supports pigment-focused indices referenced as PRI, ARI, and CRI for vegetation physiology analysis. These outputs enable assessment of carotenoid and anthocyanin behavior across crops and ecosystems. When broader analytics are required, the camera family supports dual configurations with up to ten selectable spectral bands. When combined with RedEdge-P and RedEdge-P Blue cameras, a triple configuration supports synchronized capture of fifteen multispectral bands.

Platform compatibility and workflow integration

• Compatible with professional UAV platforms, including DJI enterprise aircraft
• Supports standalone operation as a single multispectral payload
• Integrates into dual configurations with RedEdge-P family cameras
• Supports triple configurations with RedEdge-P and RedEdge-P Blue
• Enables synchronized capture using shared timing signals
• Supports Ethernet, serial, and GPIO interfaces for integration
• Compatible with common multispectral processing workflows

Professional applications and field use cases

• Pigment physiology analysis: evaluate carotenoid and anthocyanin dynamics accurately
• Crop maturity research: assess physiological indicators across plant growth stages
• Stress detection studies: identify early vegetation stress using pigment indices
• Species differentiation workflows: separate crops, weeds, and invasive vegetation reliably
• Plant phenotyping programs: support digital phenotyping and conservation research
• Environmental monitoring missions: track vegetation change and ecosystem health
• Forestry physiology assessment: analyze canopy condition and pigment responses
• Long-term research operations: maintain repeatable time-series multispectral datasets

Designed for enterprise operations

The RedEdge-P Green Multispectral Kit is designed for enterprise research operations requiring consistent data and predictable system integration. Published specifications reference IP4X protection, wide external power input, and defined operating temperature ranges with adequate airflow.

Double radiometric calibration using a downwelling light sensor and calibration reflectance panel is referenced to improve reliability under changing illumination. Standardized interfaces and raw DNG capture support interoperable enterprise research workflows.

The MicaSense RedEdge-P Green Multispectral Kit delivers pigment-sensitive multispectral analytics with scalable expansion options for enterprise research programs.
