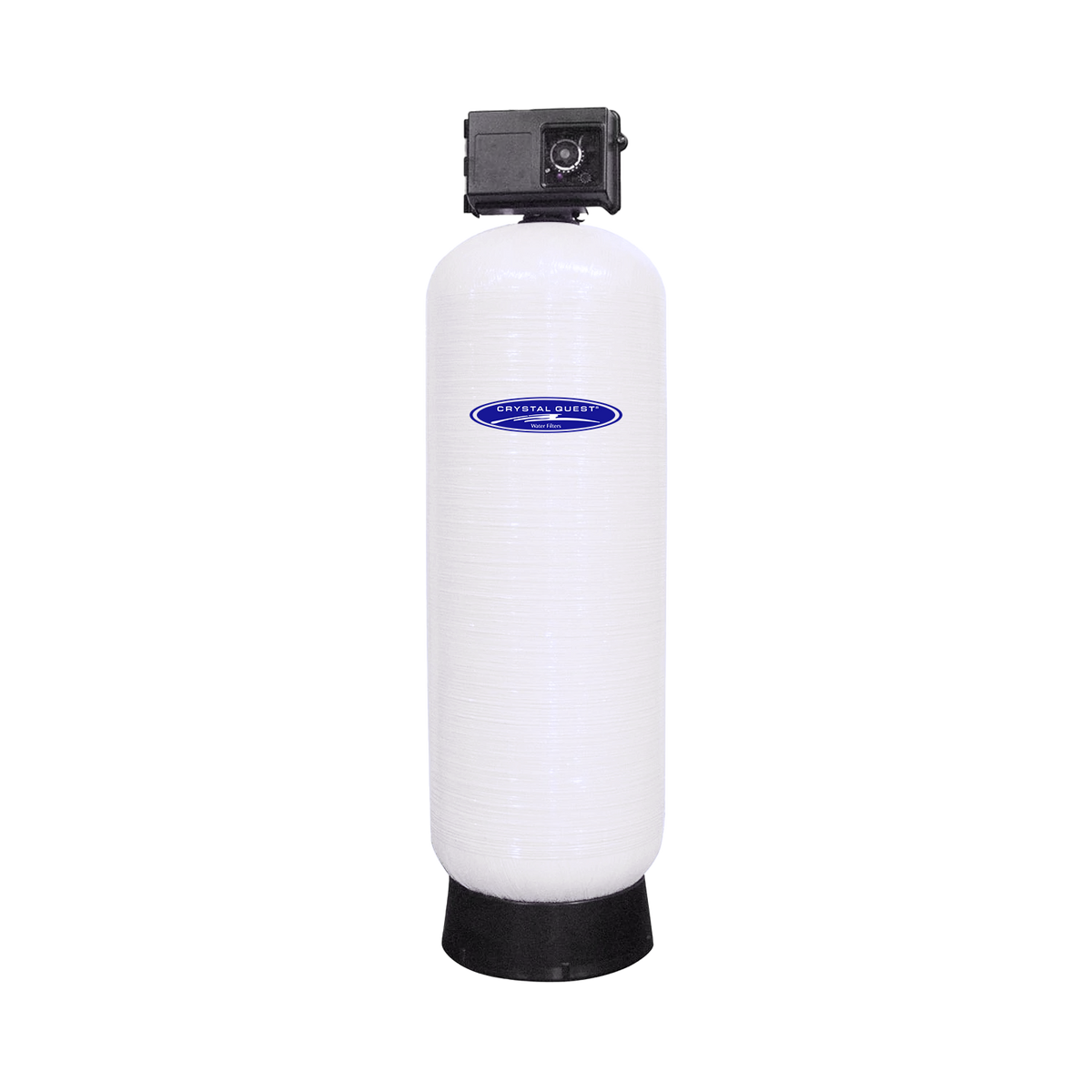

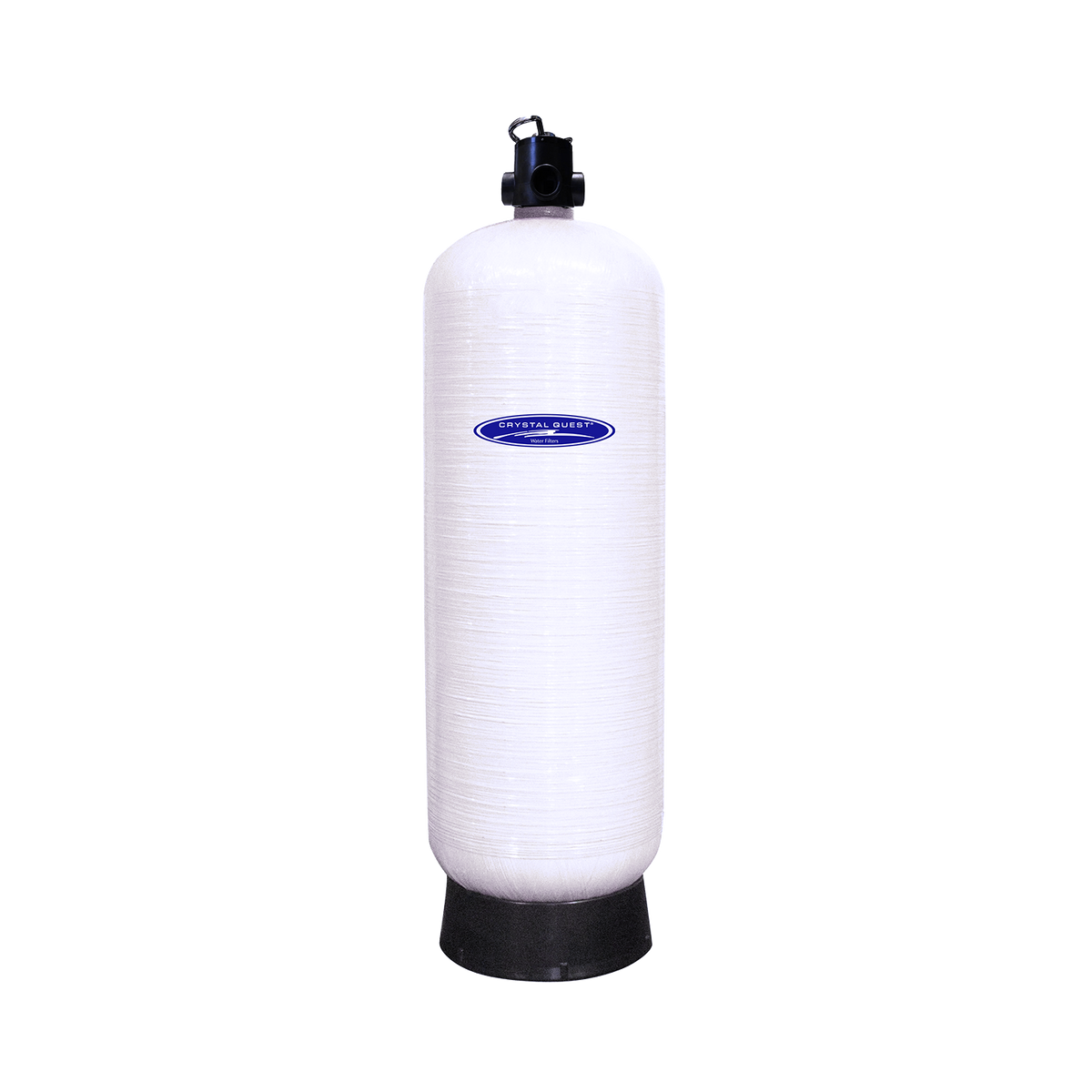

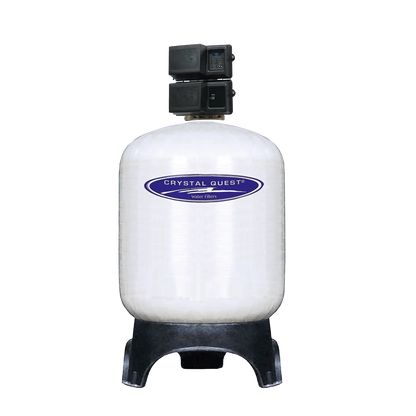

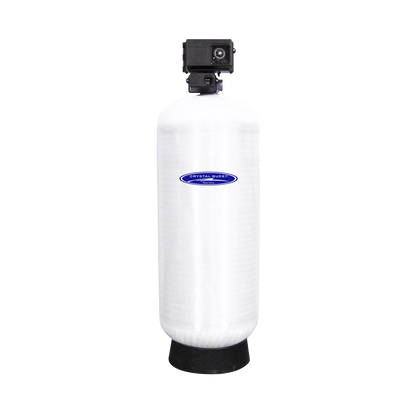

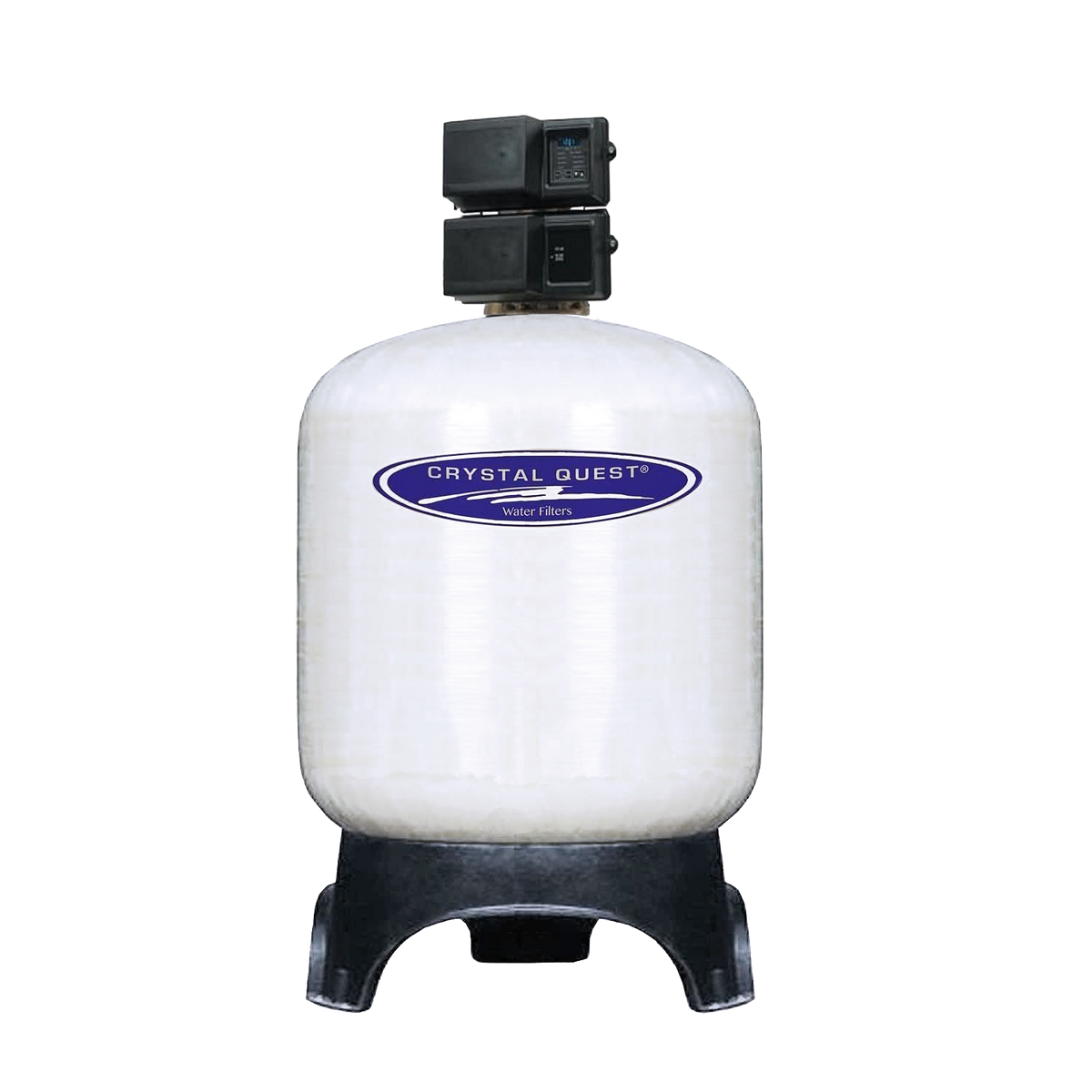

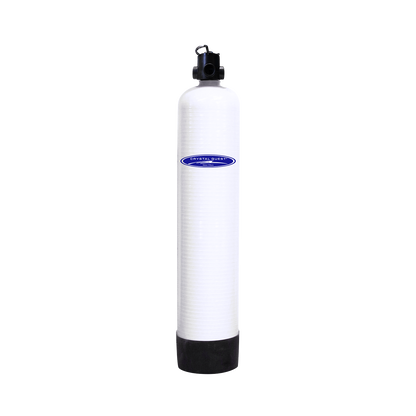

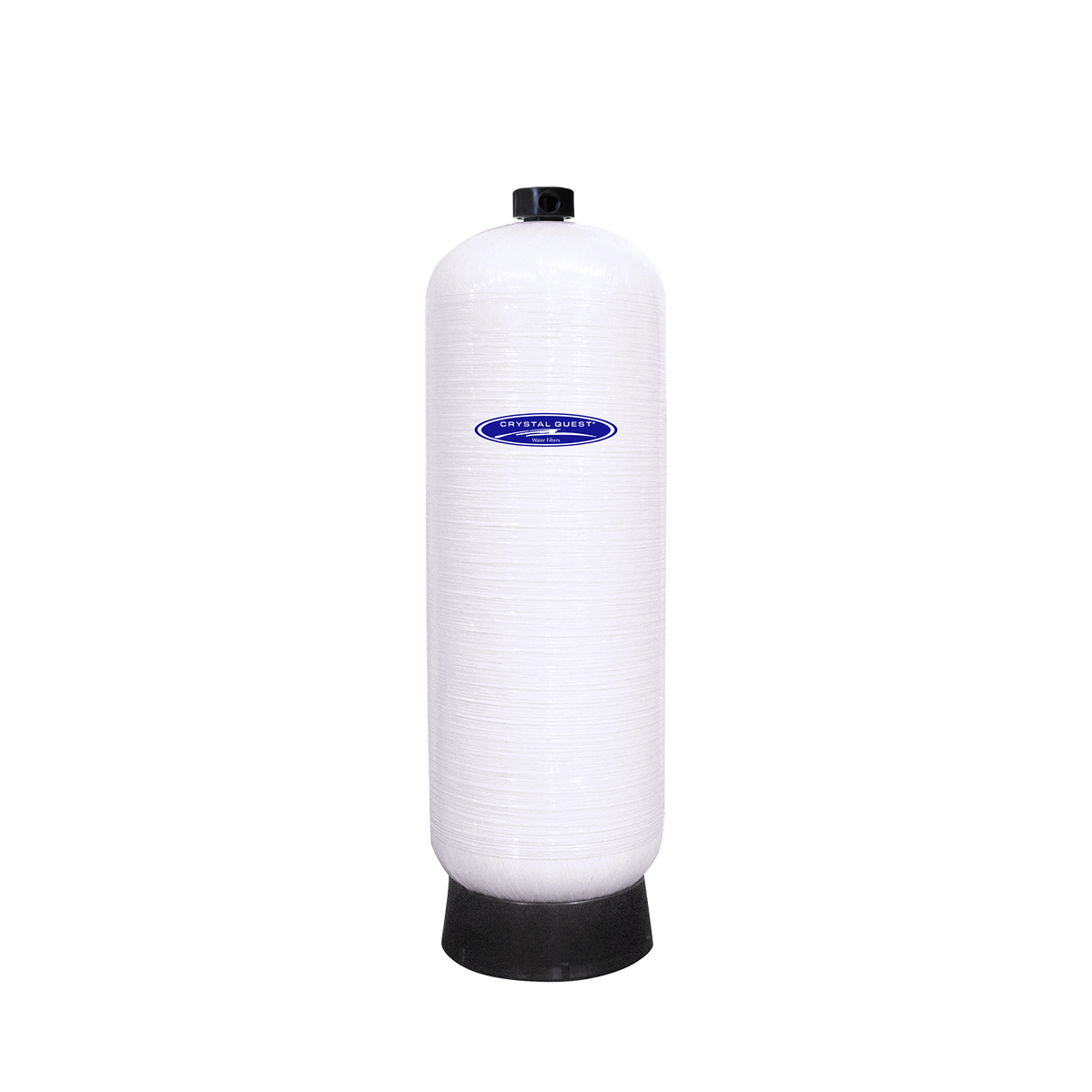

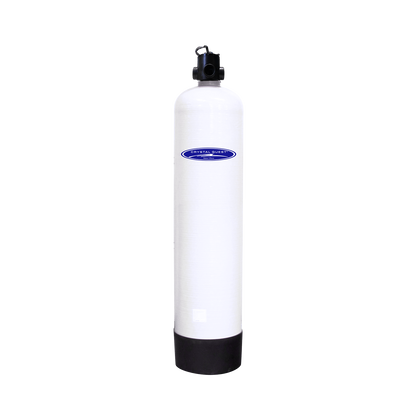

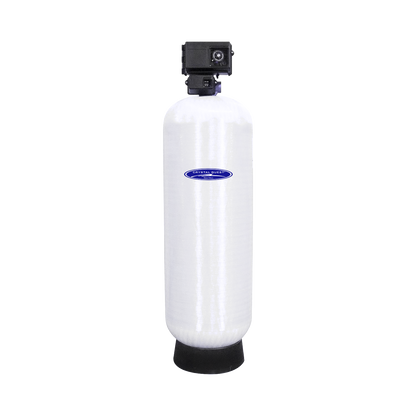

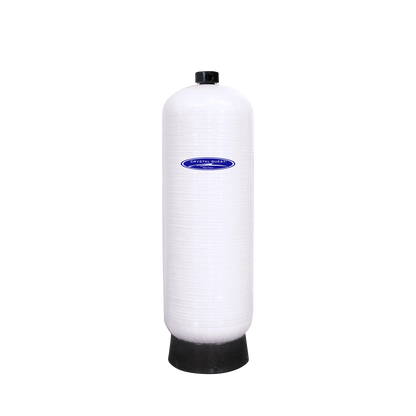

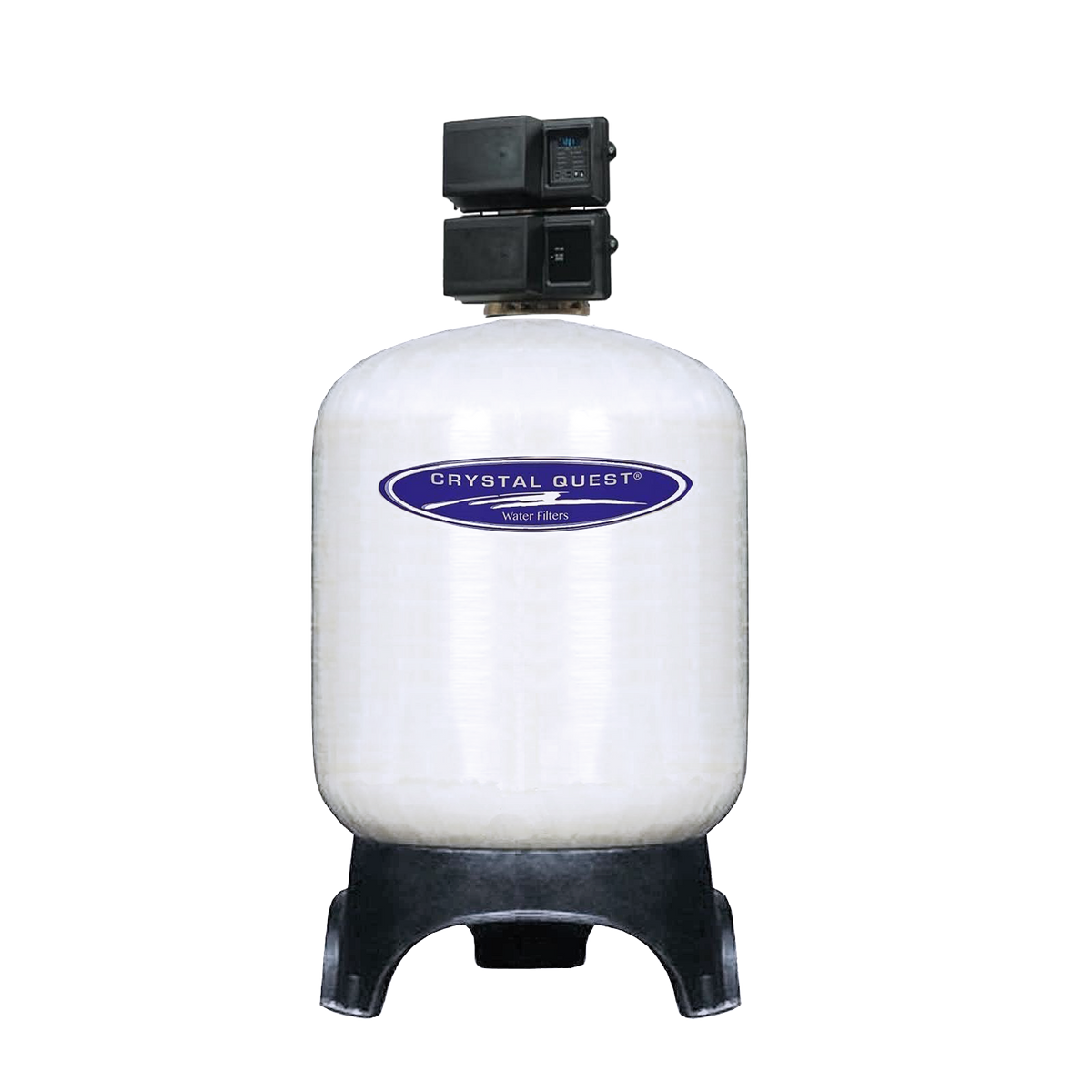

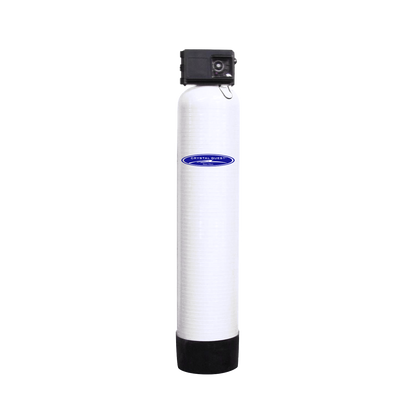

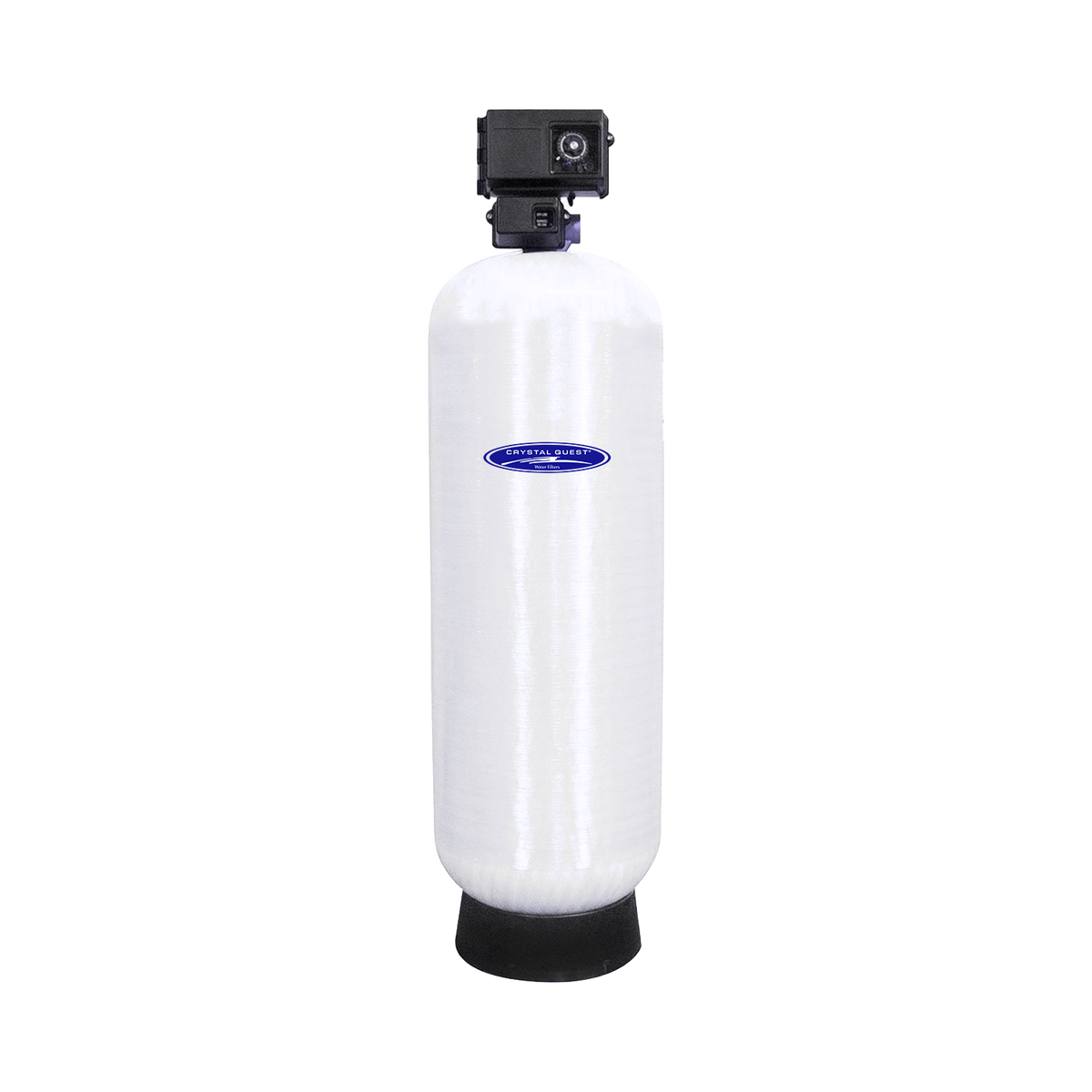

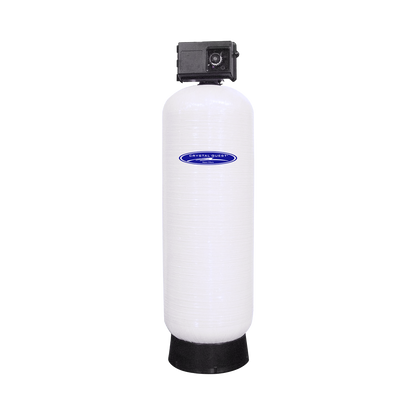

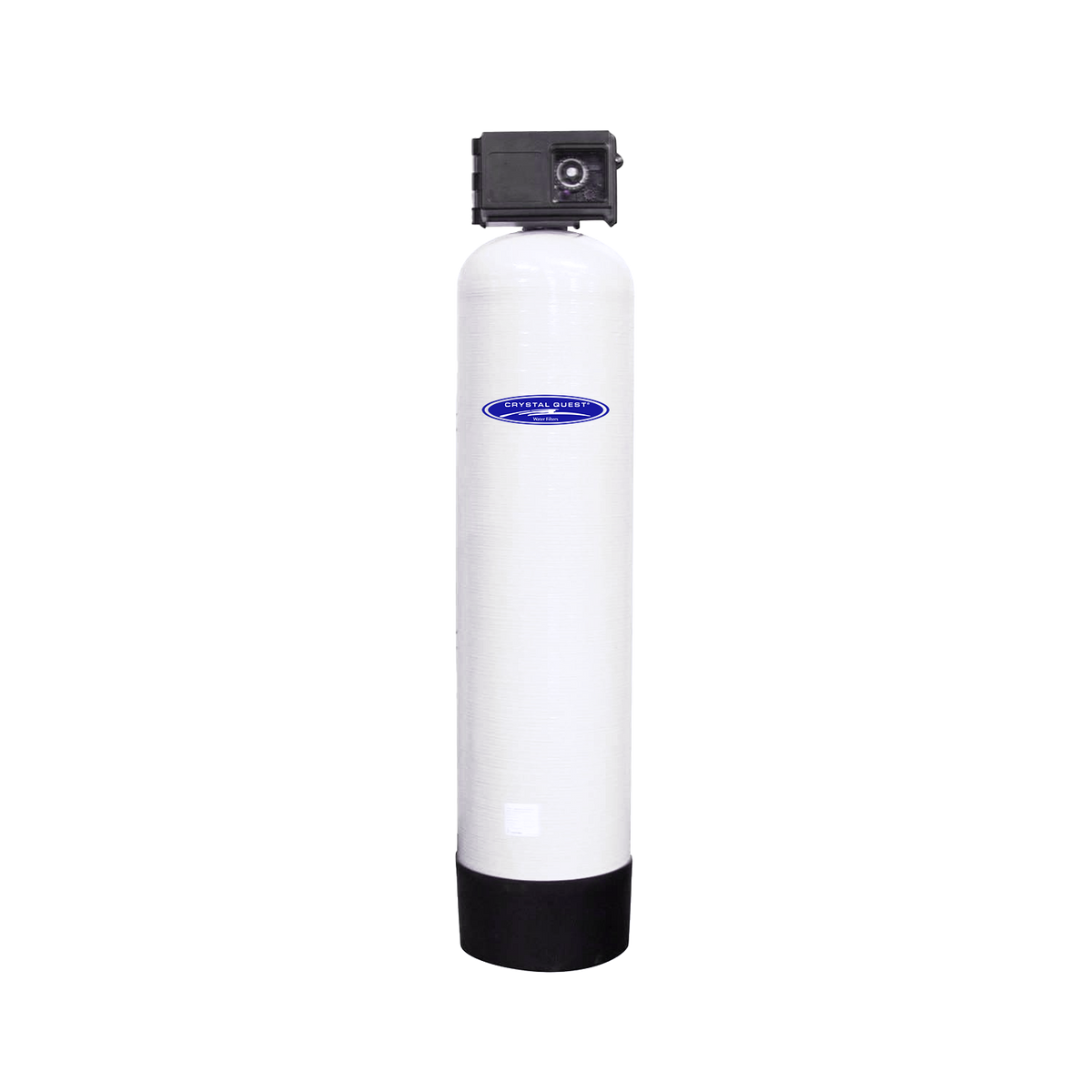

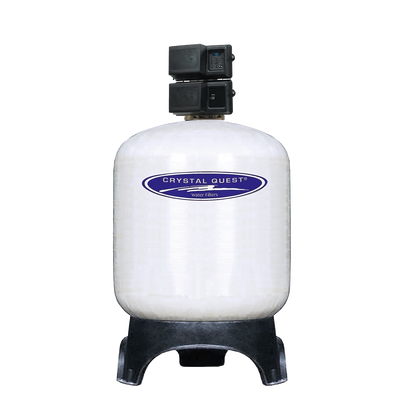

Radium & Uranium Water Filtration System
Radium & Uranium Water Filtration System
Couldn't load pickup availability
Share
Remove Radium and Uranium from Your Drinking Water
Radium and uranium are naturally occurring radioactive elements that can enter groundwater supplies through the erosion of bedrock and soil, particularly in areas with high natural deposits. These contaminants are not detectable by taste, smell, or sight, making their presence in drinking water especially concerning. Like many hazardous substances, radium and uranium can pose serious health risks even at low concentrations that do not affect the water’s appearance or flavor.
Radium can dissolve into groundwater as it moves through certain types of rock formations, while uranium often enters water sources through natural leaching or human activities such as mining or industrial waste discharge. Both elements are classified as radioactive and can increase the risk of cancer and kidney damage when consumed over time. The EPA has set maximum contaminant levels (MCLs) for these substances—5 picocuries per liter (pCi/L) for combined radium-226 and radium-228, and 30 micrograms per liter (µg/L) for uranium—to help protect public health.
This filtration system is specifically engineered to target and reduce radium and uranium levels in water, providing a reliable solution for households and communities with naturally high concentrations or potential contamination from industrial sources.
Additional Product Options
- 12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
- Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
- Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
- Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
- Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.
Important to Know
Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.
*If you are interested in our available add-ons, please call to have them added to your system.
**Please speak with a product specialist to determine if dosing or regeneration is needed for your water.**
Compatible Valves:
GPM:15
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:20 - 35
2850 Automatic Control Head
This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 1 1/2” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 60 GPM
- backwash capacity of 47 GPM
- valves use all brass material
- Fully adjustable 5-cycle control
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
2850 Automatic Control Head
This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 1 1/2” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 60 GPM
- backwash capacity of 47 GPM
- valves use all brass material
- Fully adjustable 5-cycle control
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:60 - 75
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:200 - 390
3900 Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:15 - 75

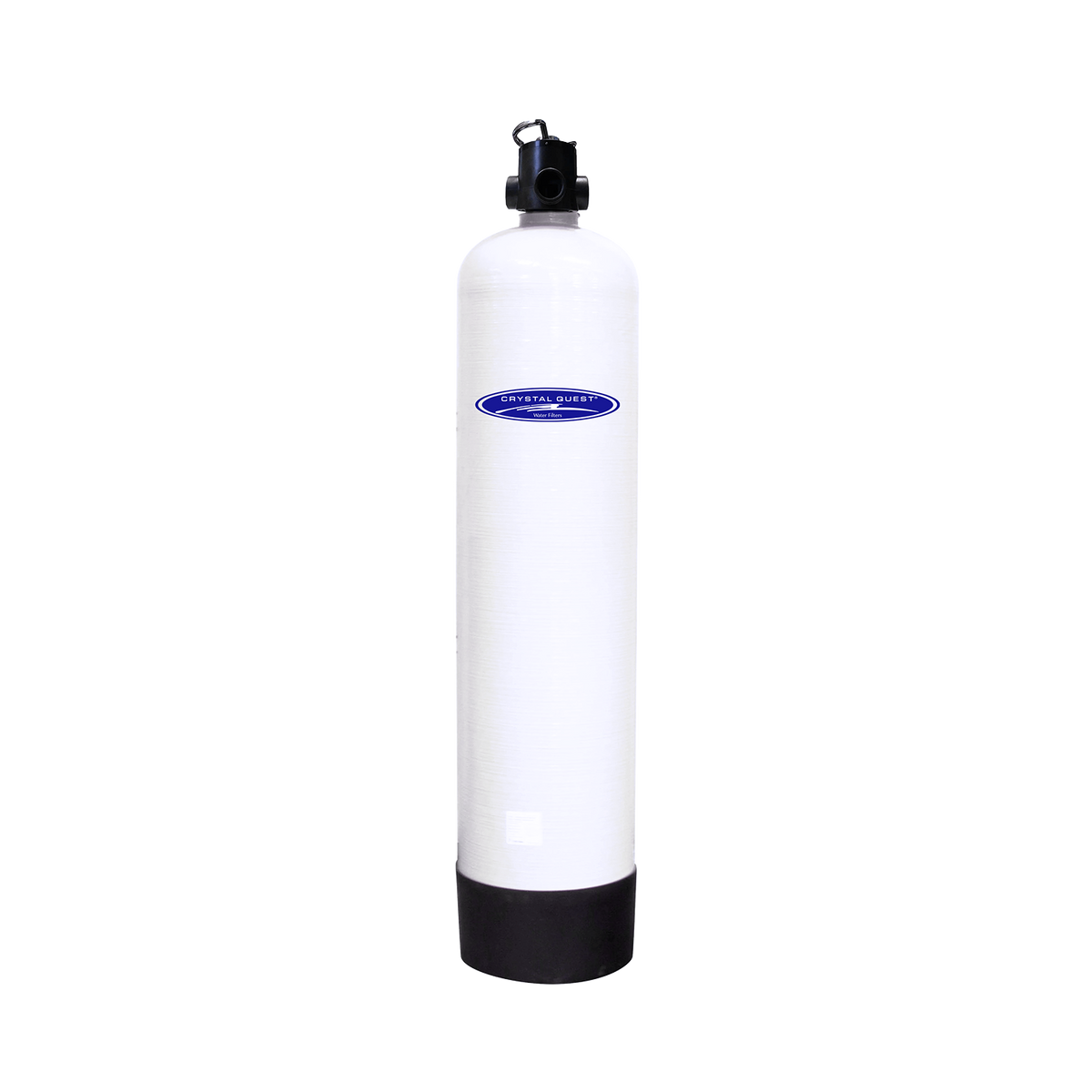

Manual Backwash Control
Features:
- easy operation
- Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain, 1.05" OD Riser, 2.5" 8-NPSM Connection
- Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection
Manual Backwash Control
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:15 - 75
Manual Upflow Head
Features:
- No electricity and no back wash
- easy operation
- can be either up or down flow simply by plumbing it backwards
- Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
- Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
###
| Specification | CQE-CO-RU116 | CQE-CO-RU119 | CQE-CO-RU122 | CQE-CO-RU125 | CQE-CO-RU128 | CQE-CO-RU131 | CQE-CO-RU133 | CQE-CO-RU134 | CQE-CO-RU135 |
|---|---|---|---|---|---|---|---|---|---|
| Service Flow Rate GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 245 | 390 |
| Peak Flow GPM | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 280 | 450 |
| Backwash Flow GPM | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 75 |
| Pipe Size | 1" | 1.5" | 1.5" | 2" | 2" | 2" / 3" | 3" | 3" | 3" |
| Electronic Control Valve | 2510 | 2850 | 2850 | 2900 | 2900 | 3150 / 3900 | 3900 | 3900 | 3900 |
|
Radium and Cadmium Removal Media |
3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 60 ft³ |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Mineral Tank Size (in.) | 14" x 65" | 16" x 65" | 21" x 62" | 24" x 72" | 30" x 72" | 36" x 72" | 42" x 72" | 48" x 72" | 63" x 83" |
| Space Required (in.) (D x H) | 16" x 75" | 18" x 75" | 23" x 84" | 24" x 95" | 32" x 95" | 40" x 192" | 46" x 192" | 52" x 192" | 67" x 203" |
| Quartz (lbs.) | 30 | 40 | 70 | 100 | 150 | 200 | 300 | 400 | 600 |
###
| Filtration Media Information |
||
|---|---|---|
| Product Data Sheet | Safety Data Sheet | |
| MetalX™-Lite | MetalX™-Lite Product Data Sheet | MetalX™-Lite Safety Data Sheet |
| ERA 6500 & 9500 | ERA 6500 & 9500 Product Data Sheet | ERA 6500 & 9500 Safety Data Sheet |
| Ion Exchange | Ion Exchange Resin Product Data Sheet | Ion Exchange Resin Safety Data Sheet |
###
