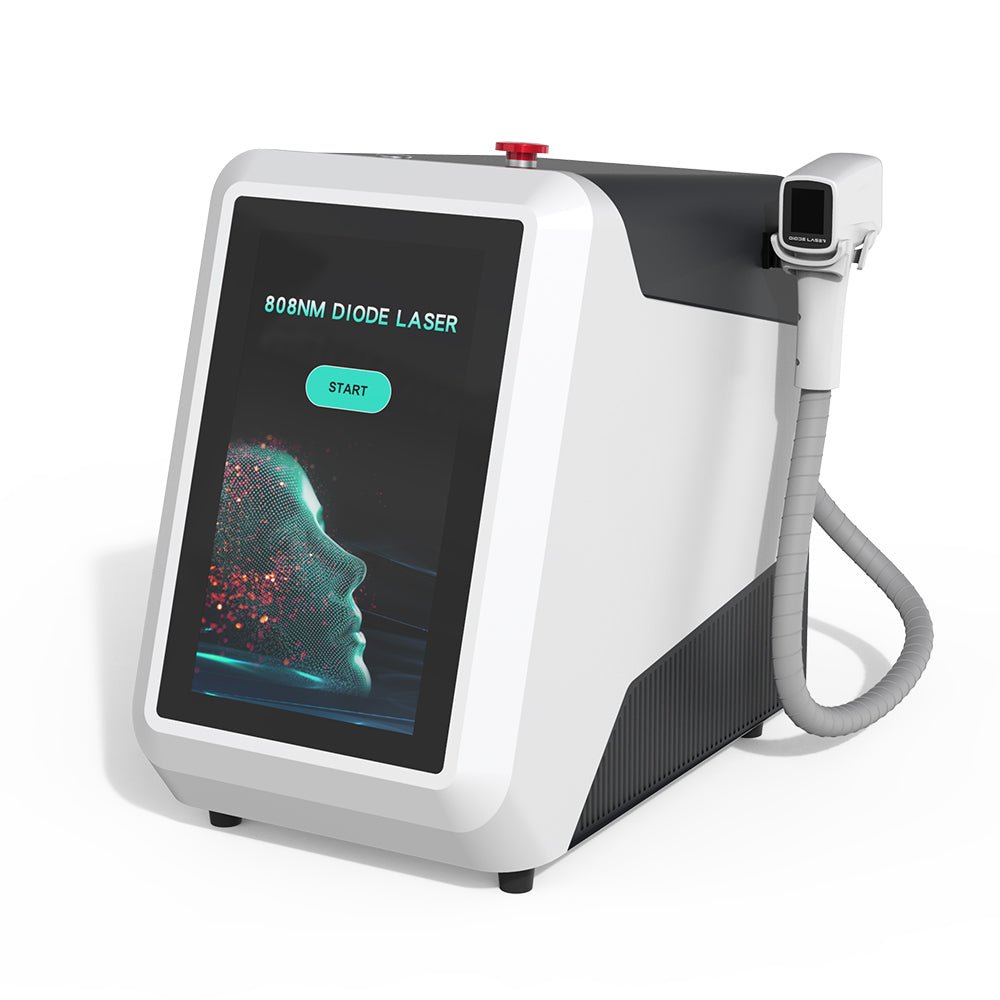

Shape Tactics 808nm Diode Laser System with Three Wavelengths

The Shape Tactics 808nm Diode Laser System is designed to support advanced beauty applications using precision diode laser technology. With three wavelengths (808nm, 790nm, and 1060nm) and adjustable energy settings, this system is versatile for different skin types and customizable for various beauty routines.

Its user-friendly 15.6-inch touchscreen interface, high-powered 2000W laser, and advanced cooling system ensure efficient performance and enhanced comfort. Ideal for professional use, this non-invasive system delivers consistent, targeted energy for reliable cosmetic treatments.

Key Features

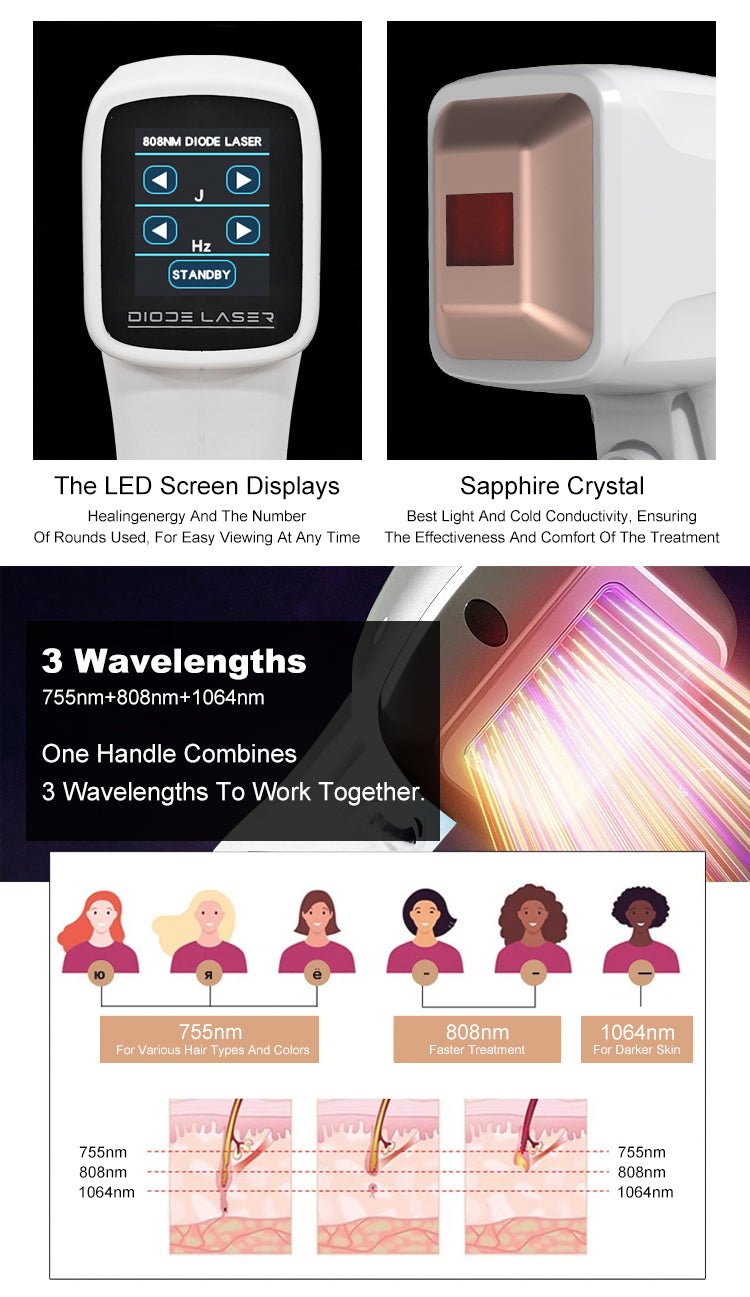

Triple-Wavelength Diode Laser for versatile cosmetic applications

Adjustable Frequency & Energy Density for customized treatments

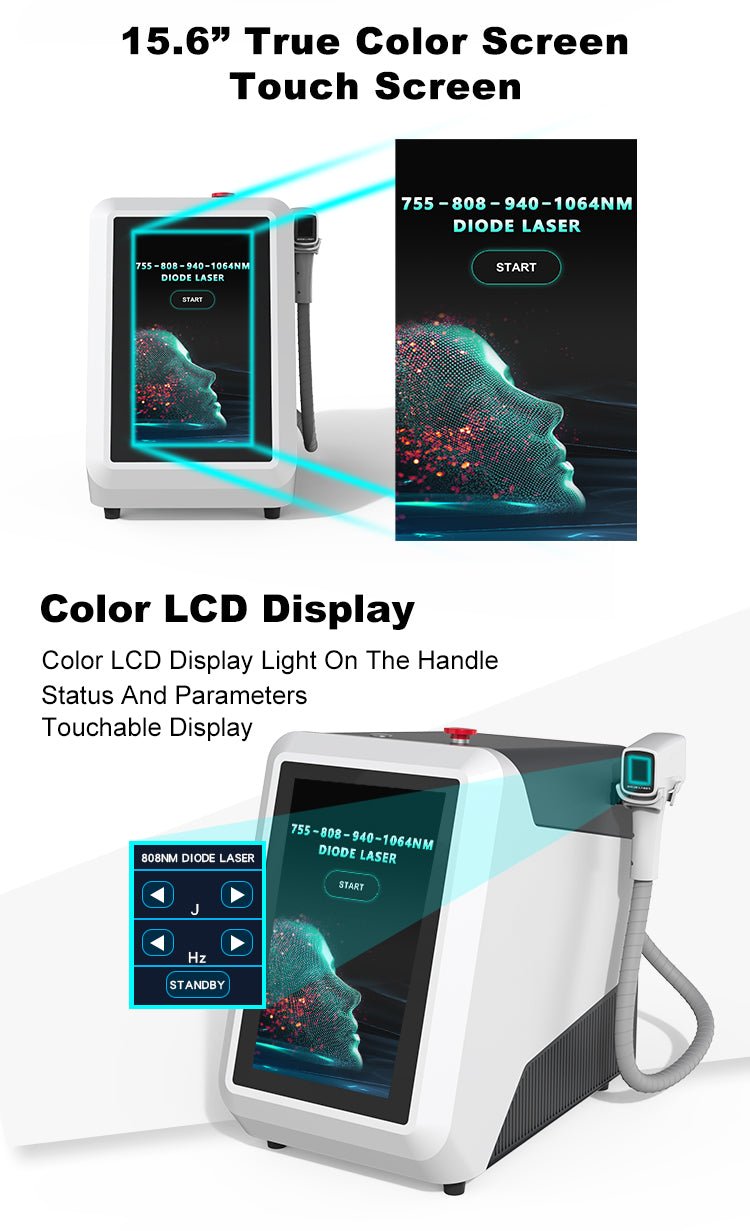

15.6-Inch Touchscreen Interface for intuitive operation

Advanced Cooling System (-6 to 1℃) for enhanced comfort

Durable ABS & Metal Construction for long-term use

Compatible with AC110V & AC220V for flexible operation

Important Setup Note

Before using the system:

1. Fill the machine with purified or distilled water to ensure proper function.
2. Ensure all components are securely connected before turning on the device.

Failure to follow these steps may result in improper operation or potential damage to the system.

Specifications

Laser Type: Diode Laser

Wavelengths: 808nm, 790nm, 1060nm

Frequency: 1–10Hz (Adjustable)

Energy Density: 1-120J

Spot Size: 12x24mm

Laser Power: 2000W

Input Power: 4000W

Output Mode: Pulse Output

Screen Display: 15.6-Inch Touchscreen

Cooling System: Semiconductor Refrigeration + Water + Air Cooling Constant Temperature

Handle Temperature: -6 to 1℃

Shell Material: ABS Plastic + Metal

Voltage: AC220V / AC110V
