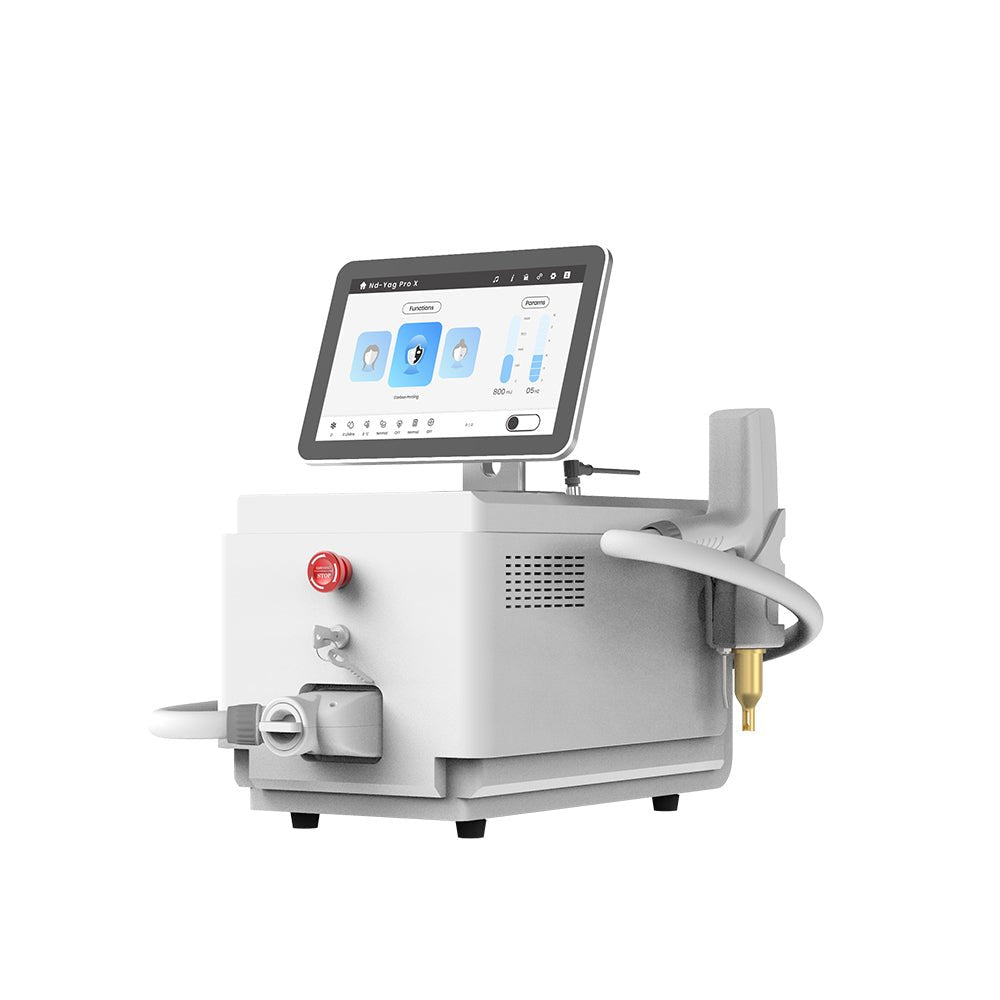

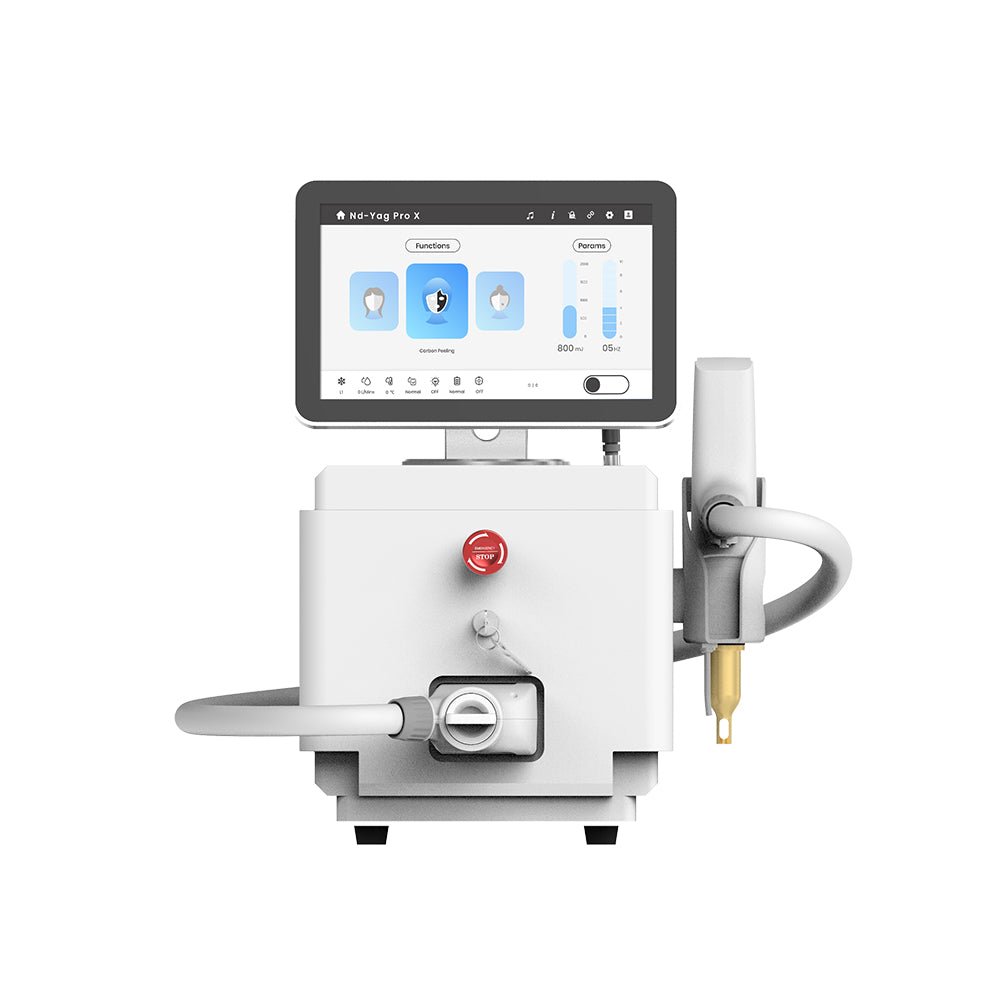

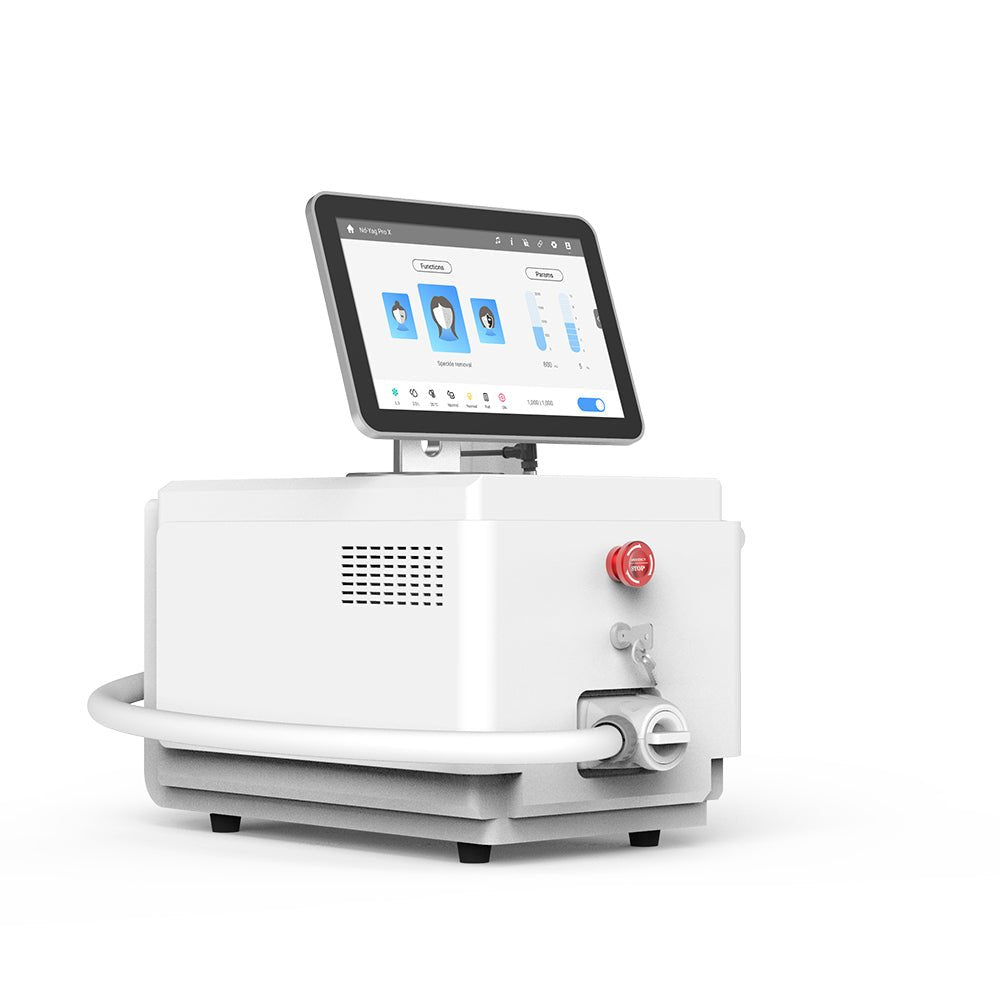

Shape Tactics NDPlus Air Cooled Laser System

The NDPlus Air Cooled Laser System is a high-performance aesthetic device engineered for precision skin treatments, including pigment correction, skin rejuvenation, and cosmetic tattoo fading. Designed with versatility in mind, this system delivers powerful pulses across three wavelengths to address a range of cosmetic skin concerns. Its compact structure and ergonomic design make it ideal for both clinical and mobile environments.

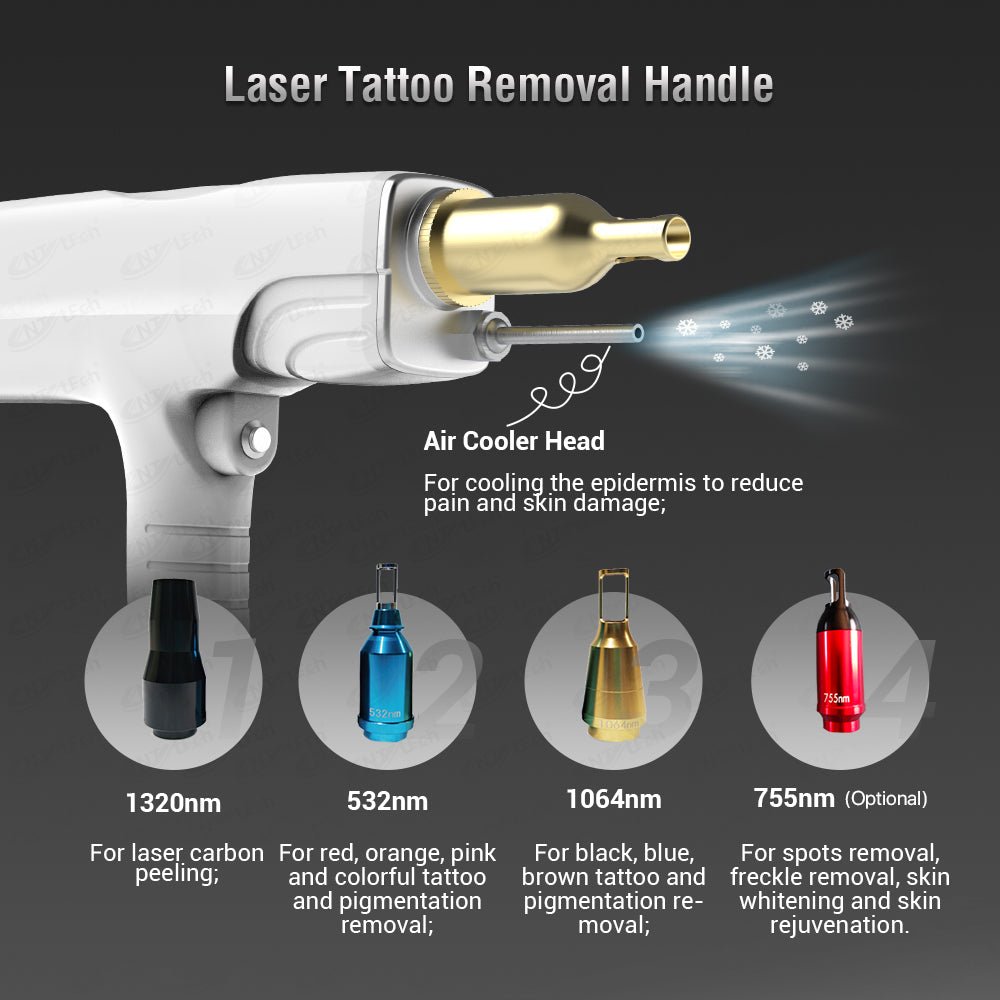

Treatment Heads:

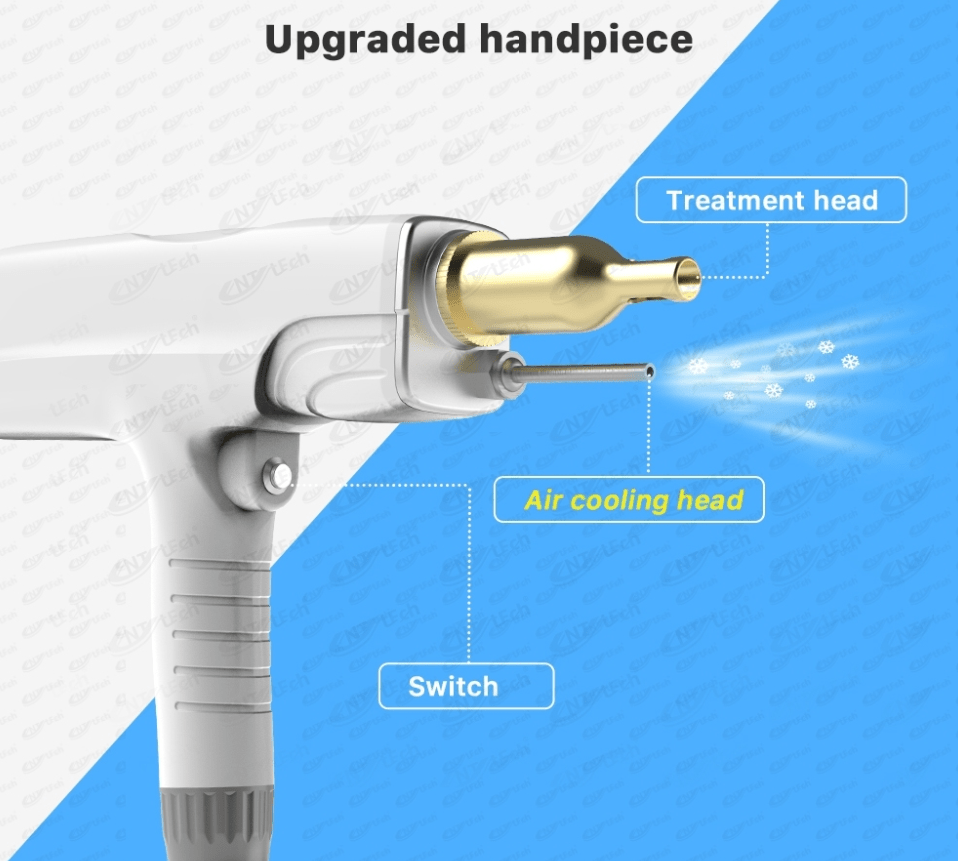

Air Cooling Head – Reduces pain and protects the skin surface

1064nm – For black, blue, and brown tattoo or deep pigmentation removal

532nm – Targets red, orange, pink, and colorful tattoos

1320nm – For carbon peeling and skin cleansing

755nm – Treats spots, freckles, and supports skin whitening and rejuvenation

Specifications

Laser Wavelengths 1064nm, 532nm, 1320nm, 755nm

Energy Range 10–2000mj

Pulse Width 0–10ns

Frequency Range 1–10Hz

Spot Size 2–8mm (adjustable)

Display 13.3" OGS Android touchscreen

Cooling System Air-cooled, 15W (5°C)

Input Voltage AC 220V, 50Hz / AC 110V, 60Hz

Laser Bar Options φ5mm / φ6mm / φ7mm (optional)

Shot Lifespan Over 1,000,000 pulses

Net/Gross Weight 20kg / 25kg

Machine Dimensions 50 × 48 × 30 cm

Package Dimensions 60 × 51 × 41 cm

Package Contents

1x Main Machine
4x Laser Attachments (532nm, 755nm, 1064nm, 1320nm)
1x Foot Pedal (for treatment activation)
1x Protective Aluminum Carrying Case
1x Safety Goggles (Operator Use)
1x Safety Goggles (Client Use)
1x Set of O-rings/Spare Parts
1x Aiming Beam or Red Light Guide
1x Power Cord
