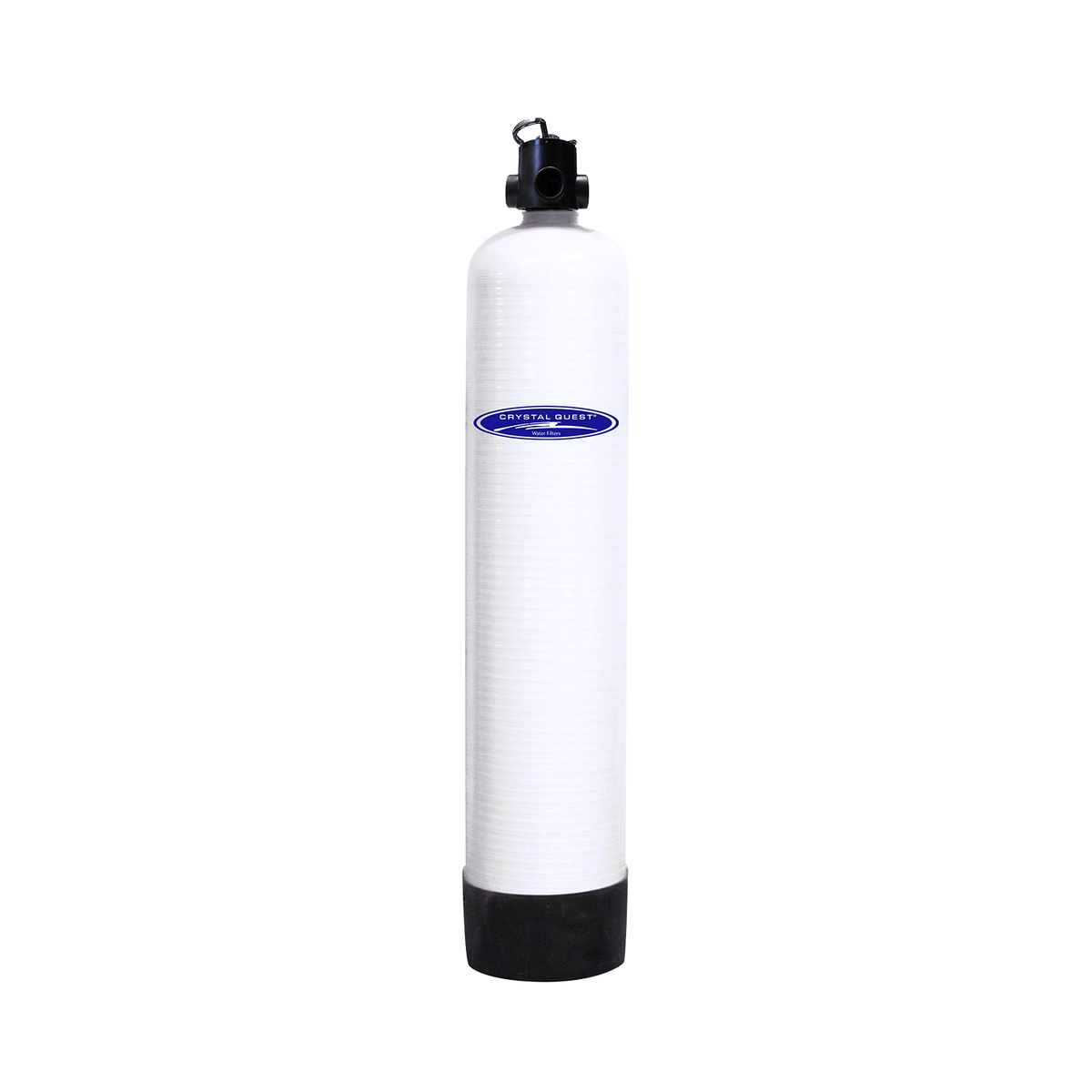

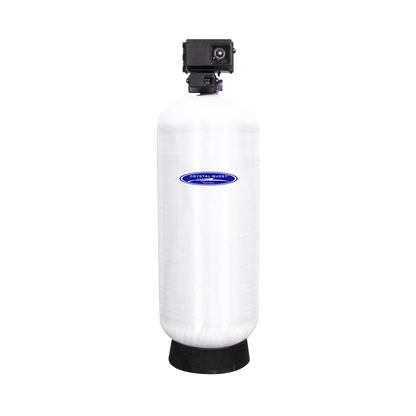

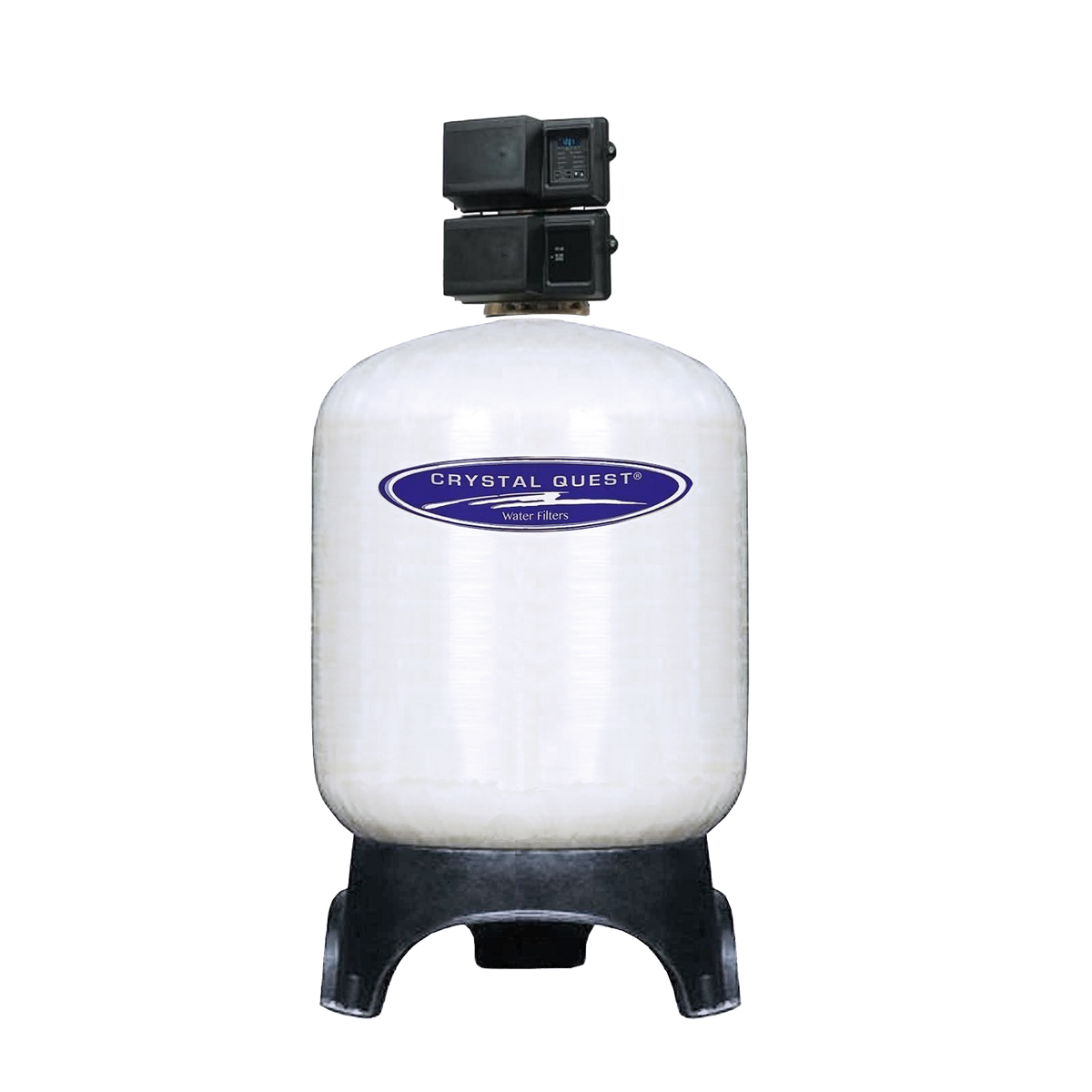

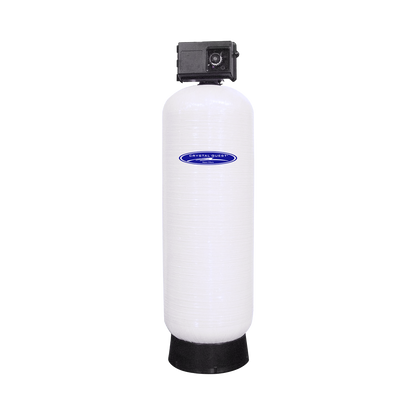

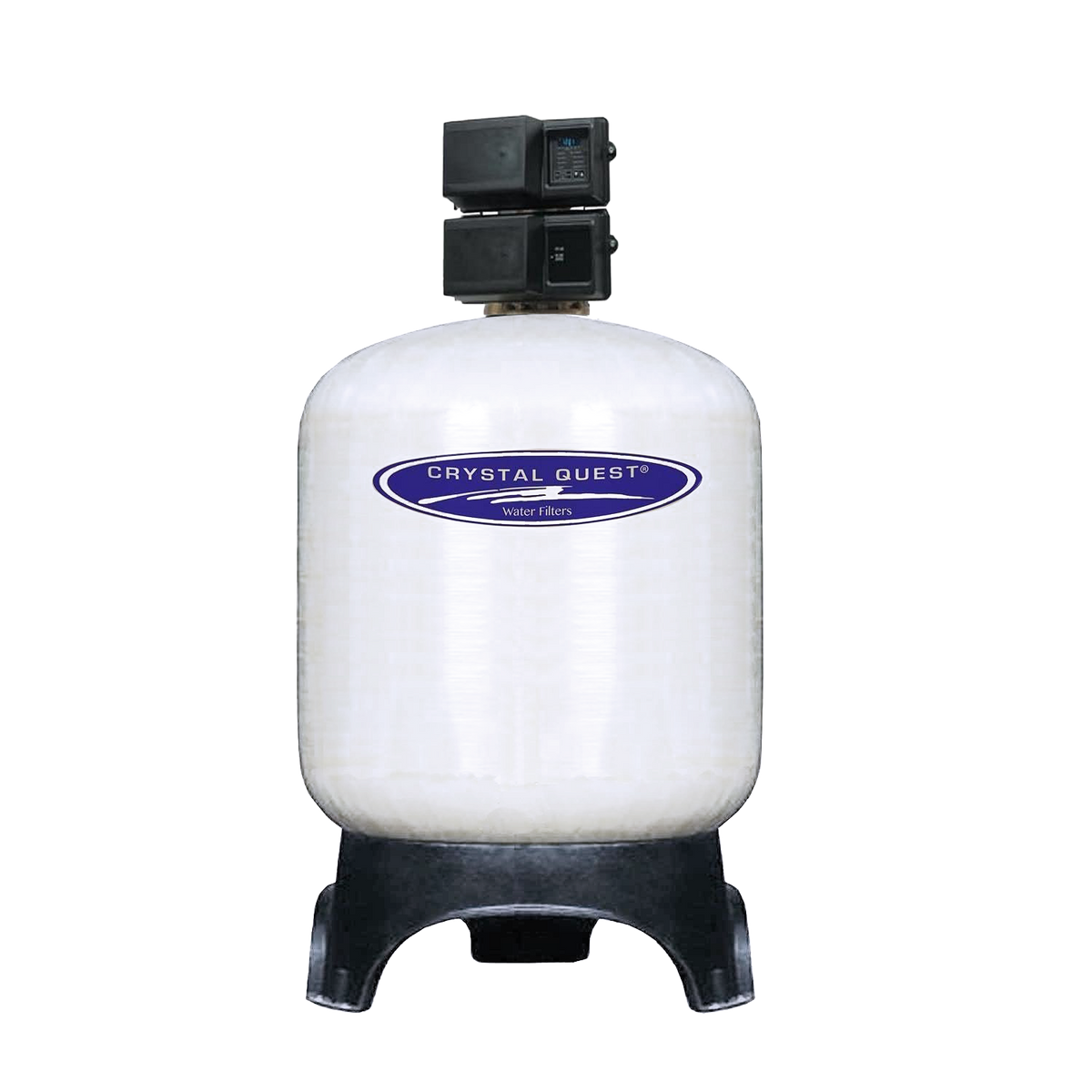

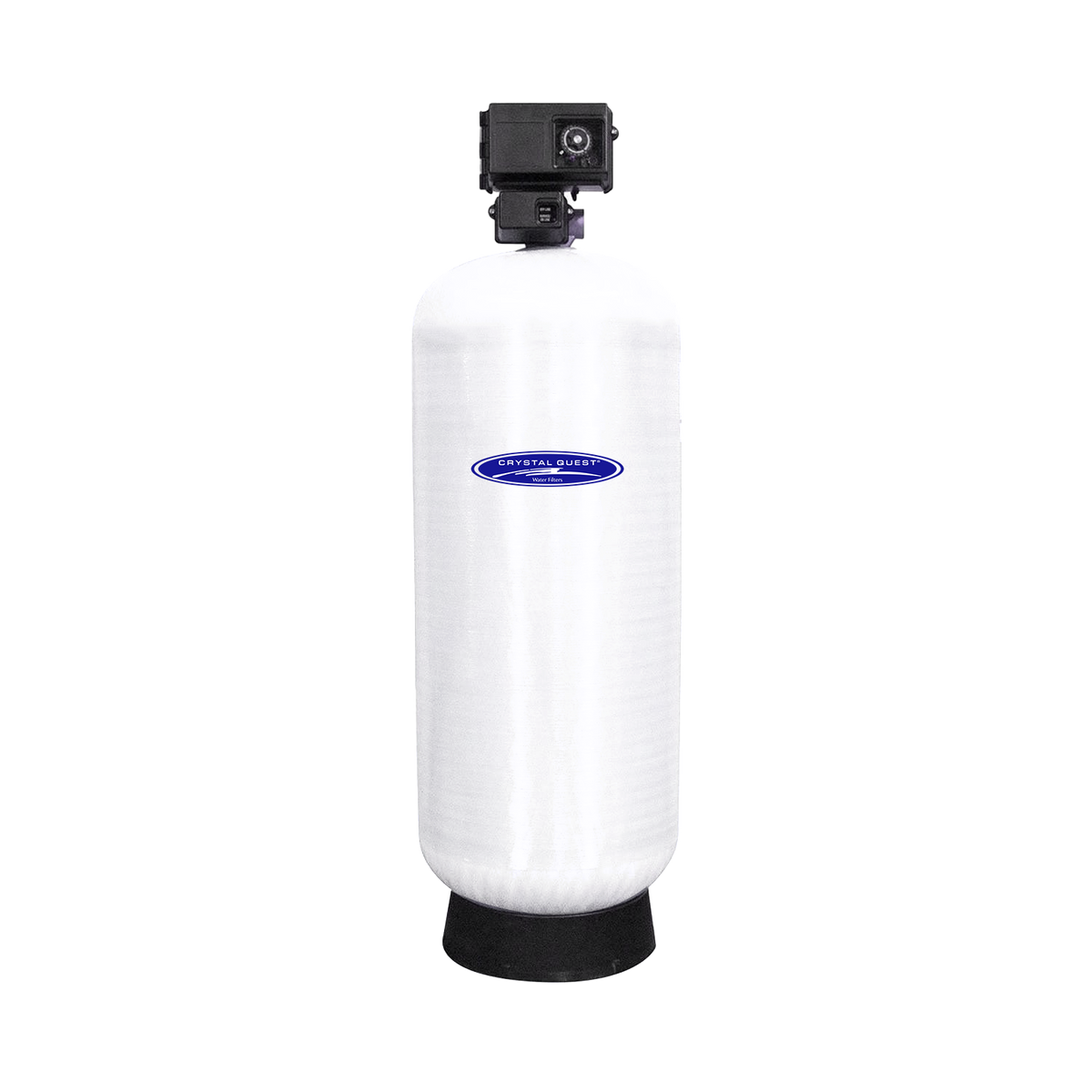

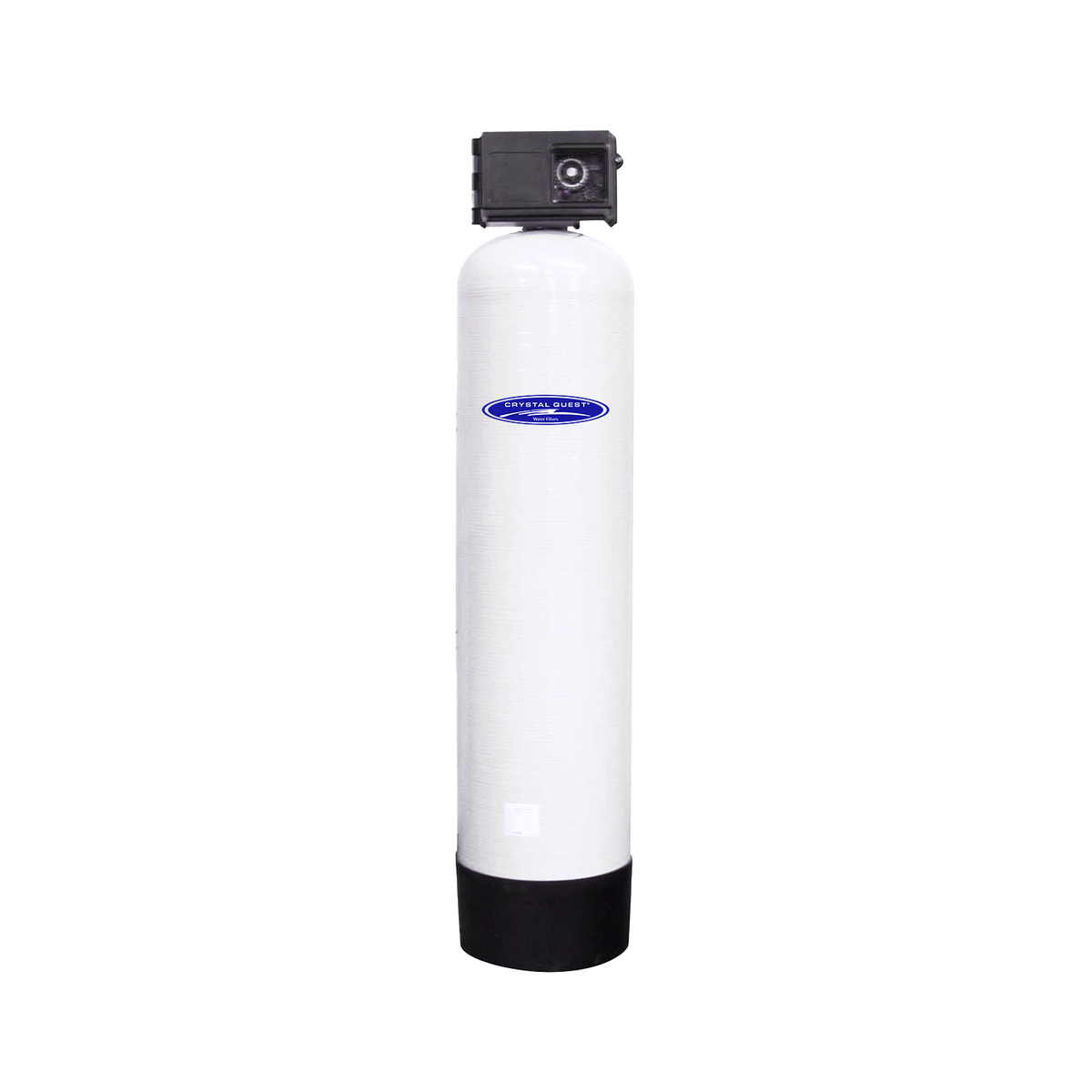

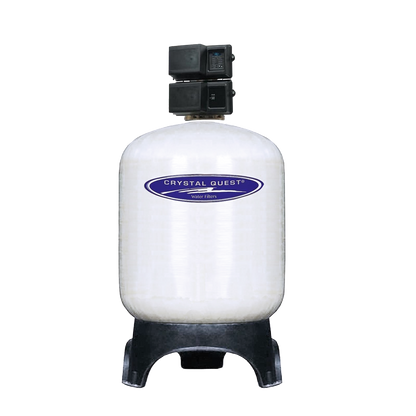

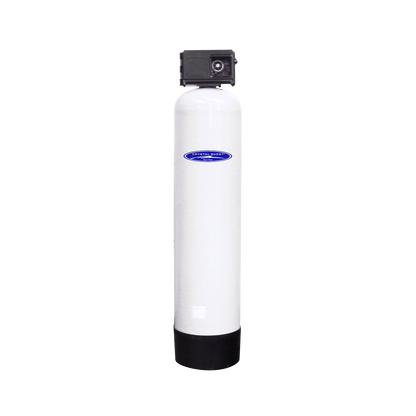

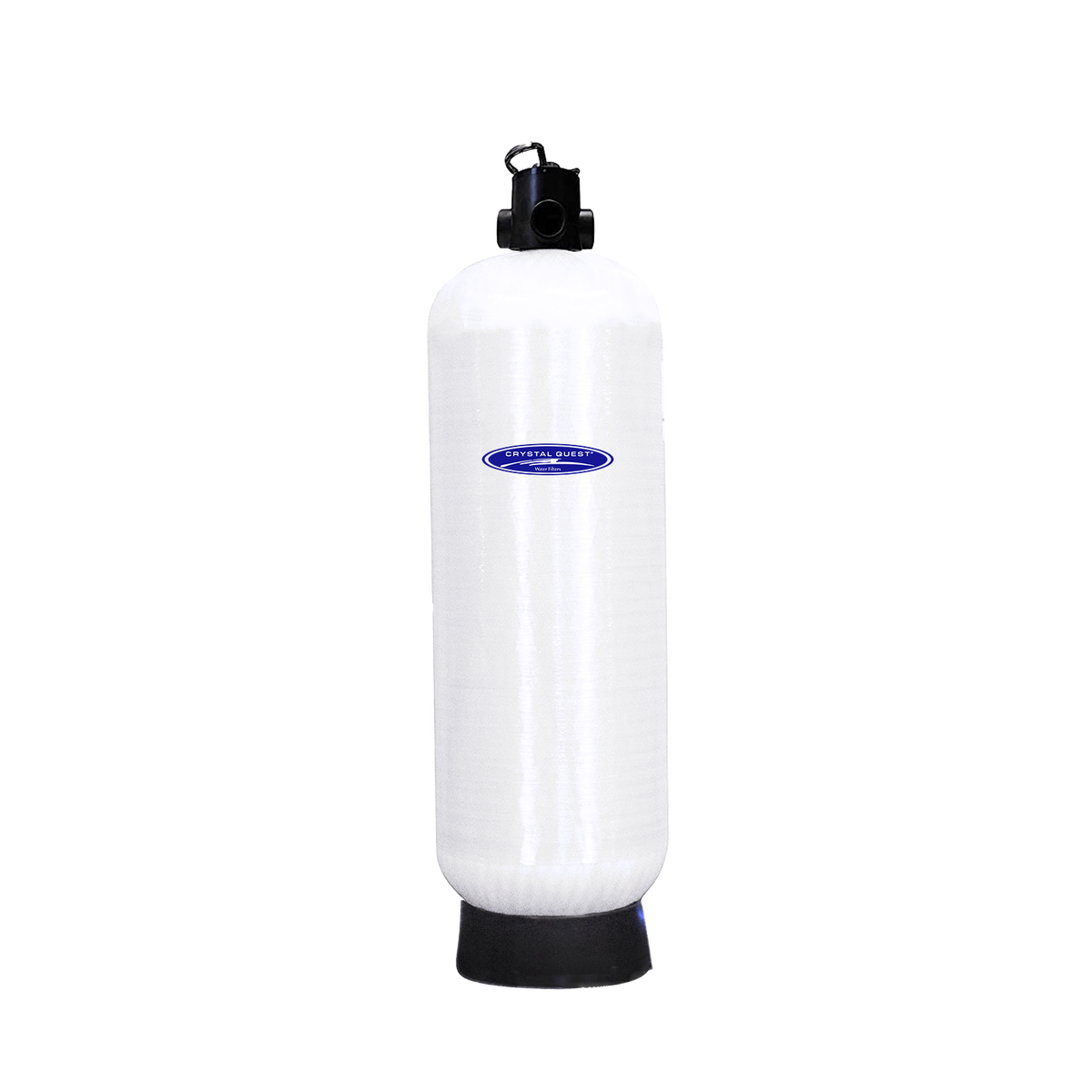

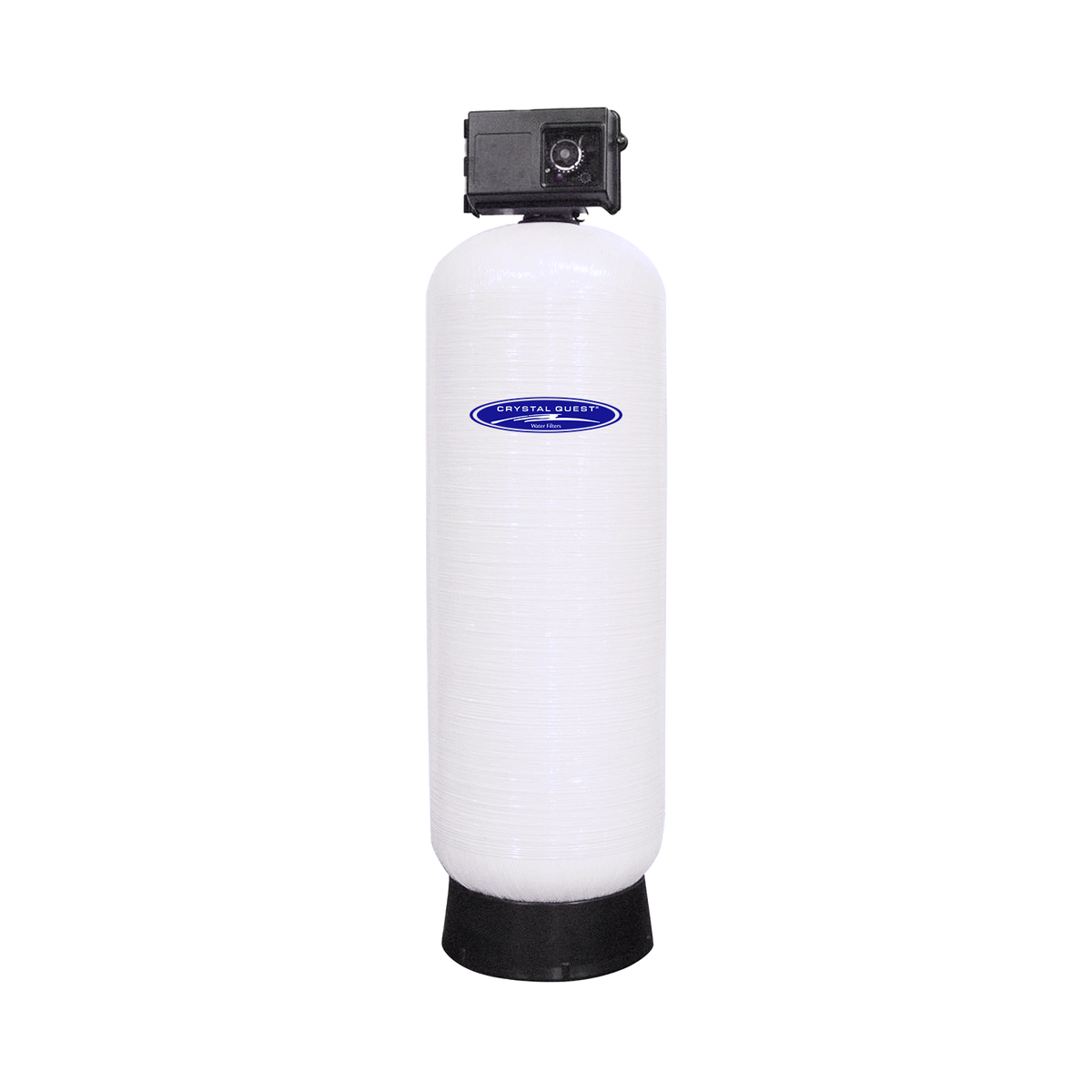

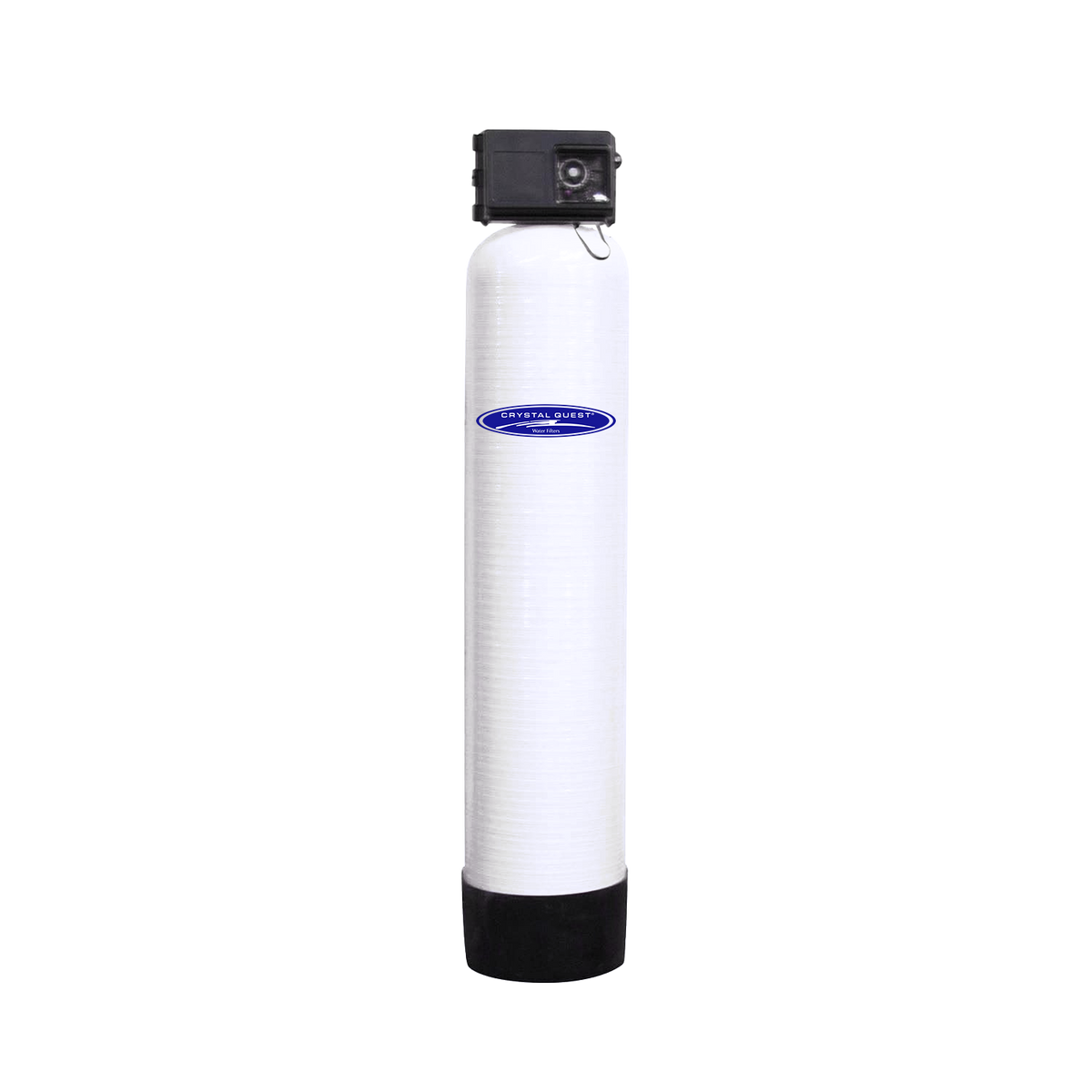

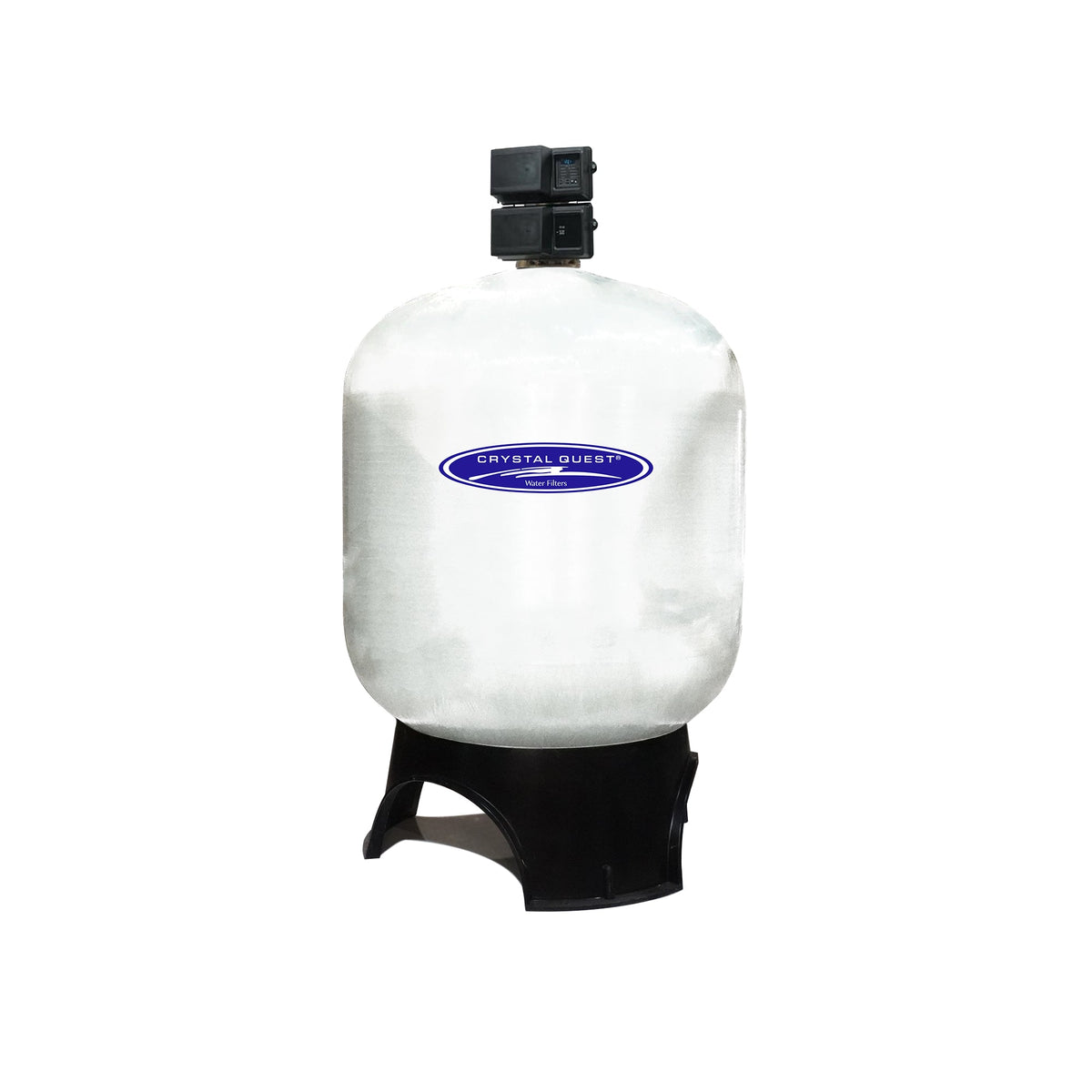

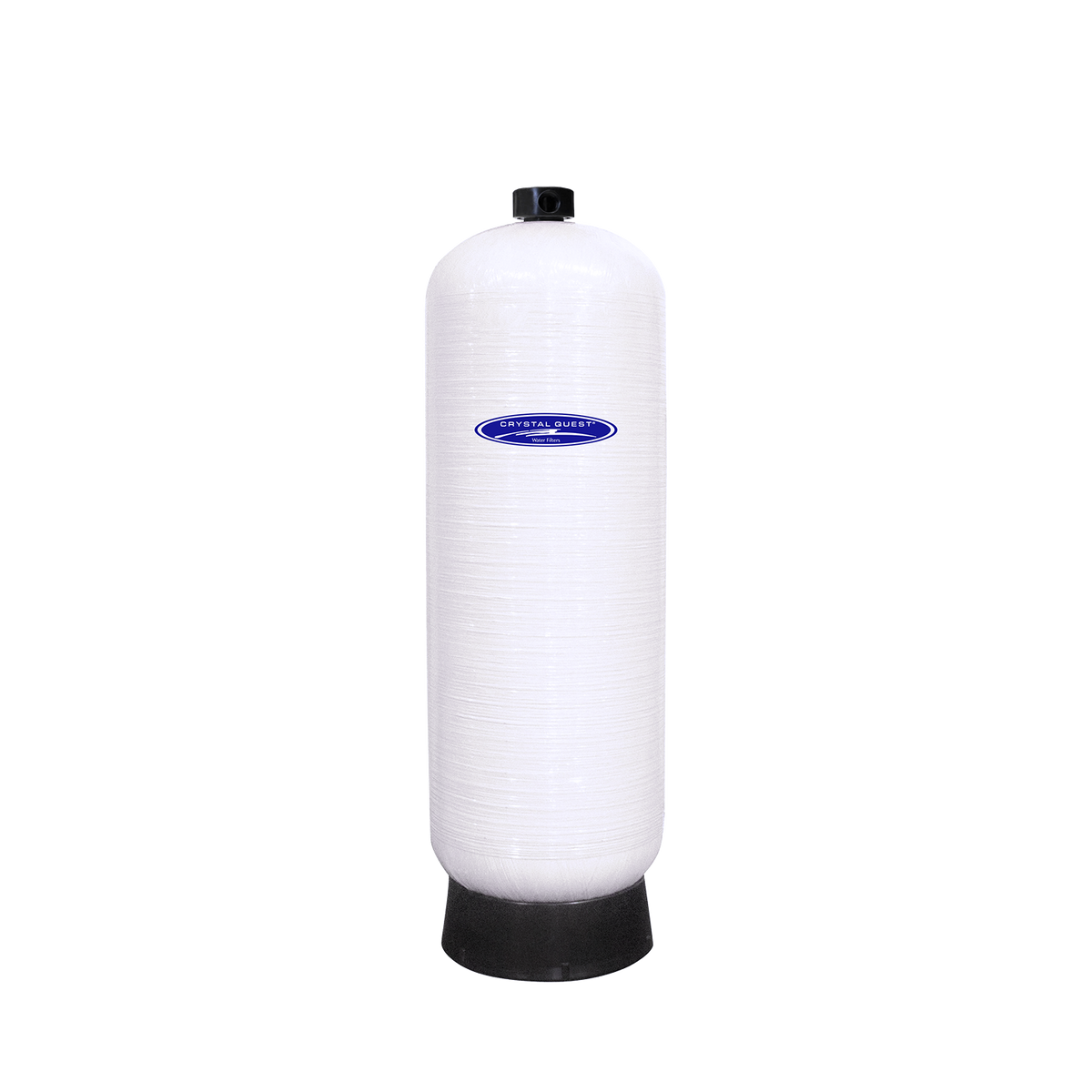

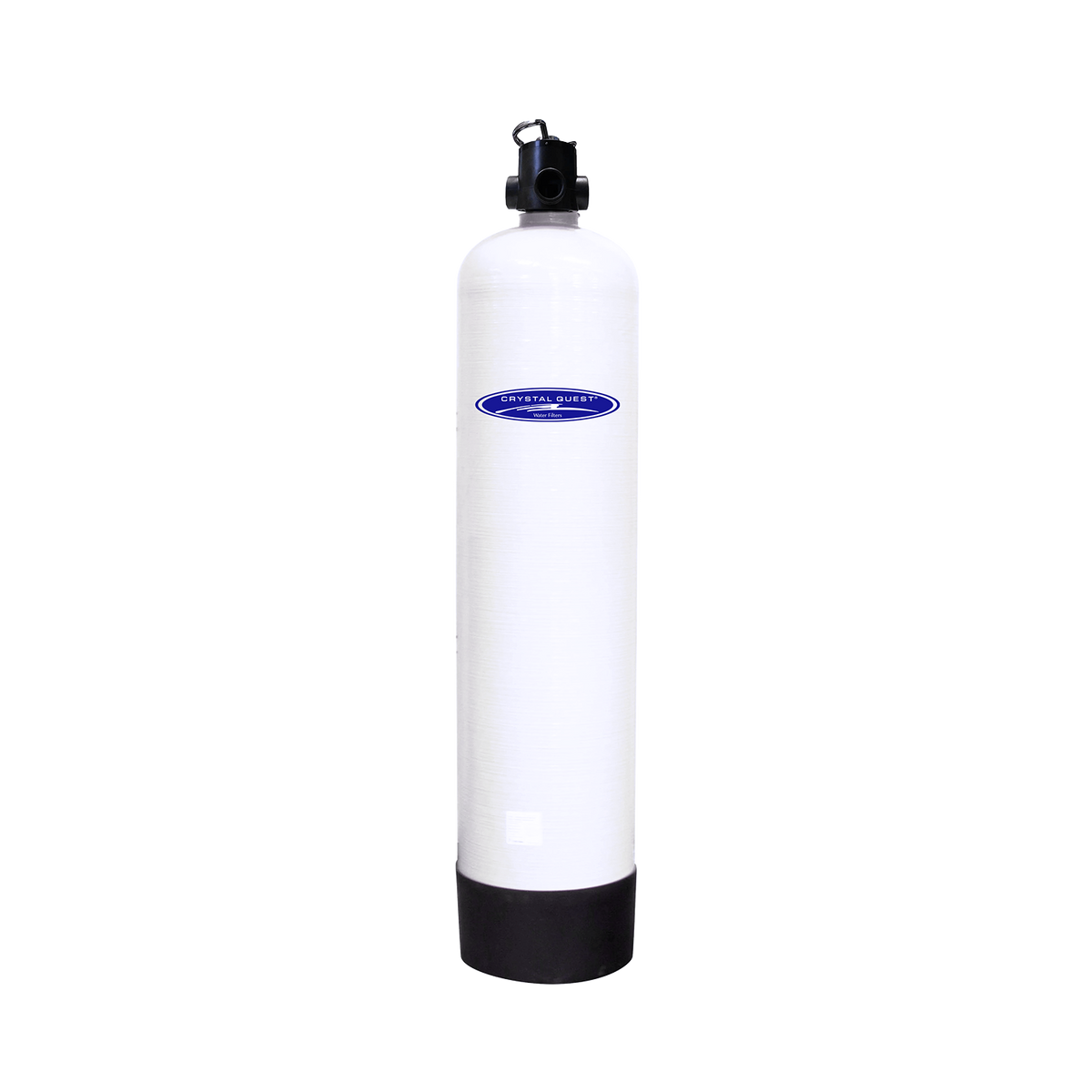

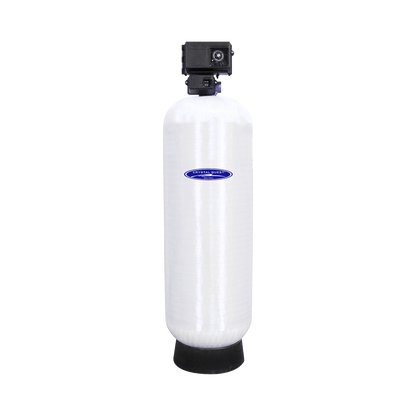

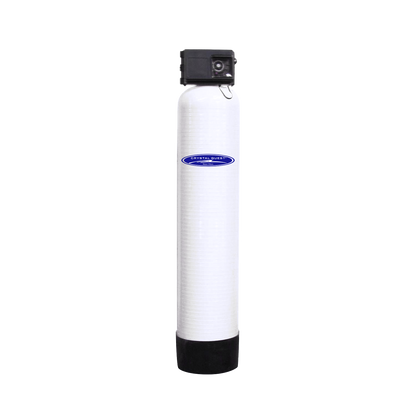

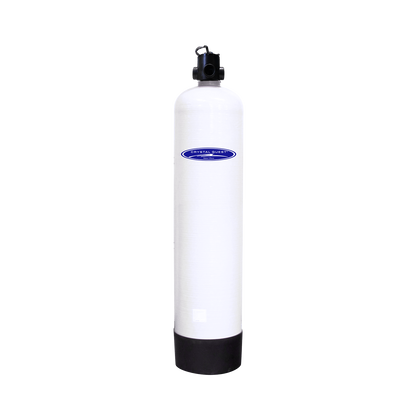

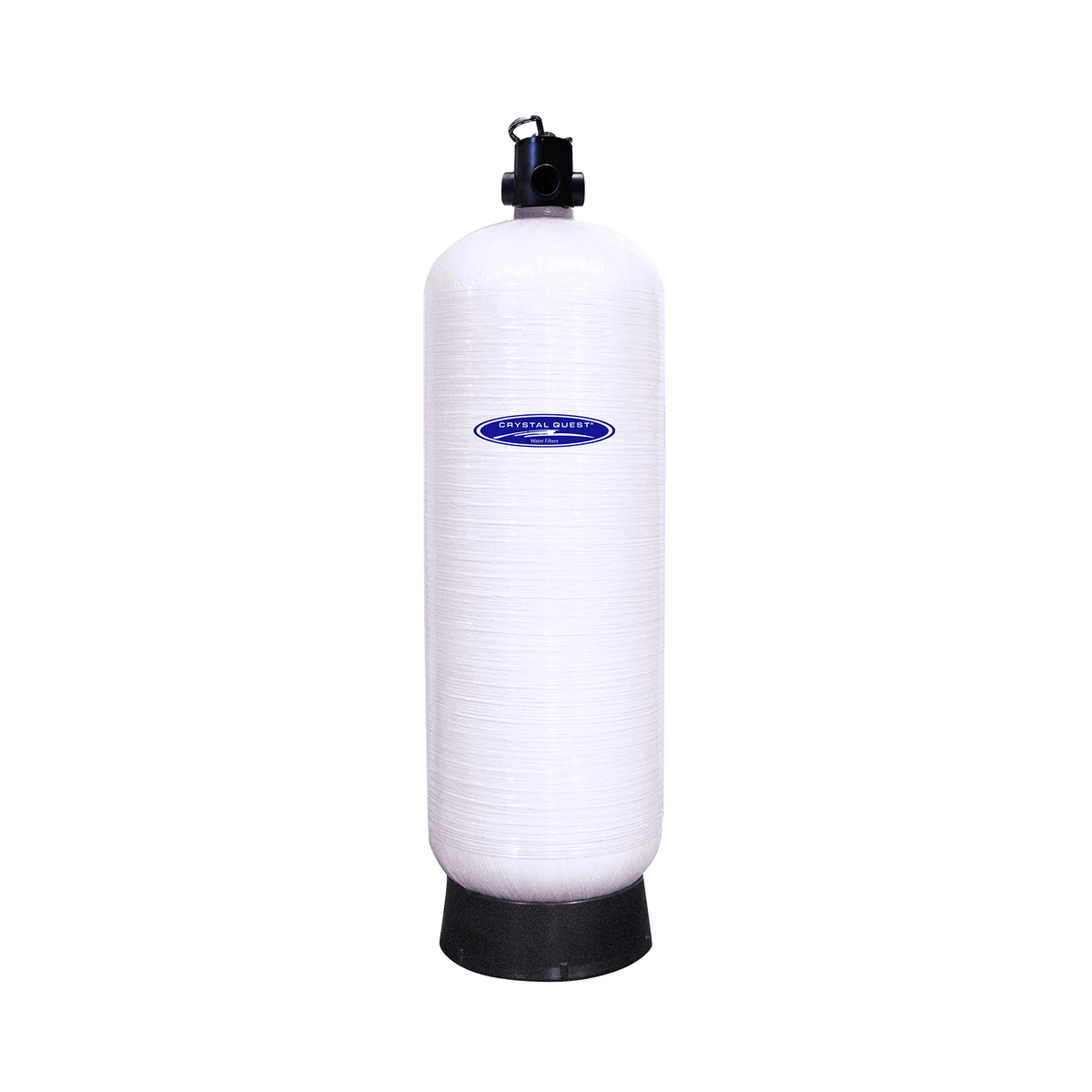

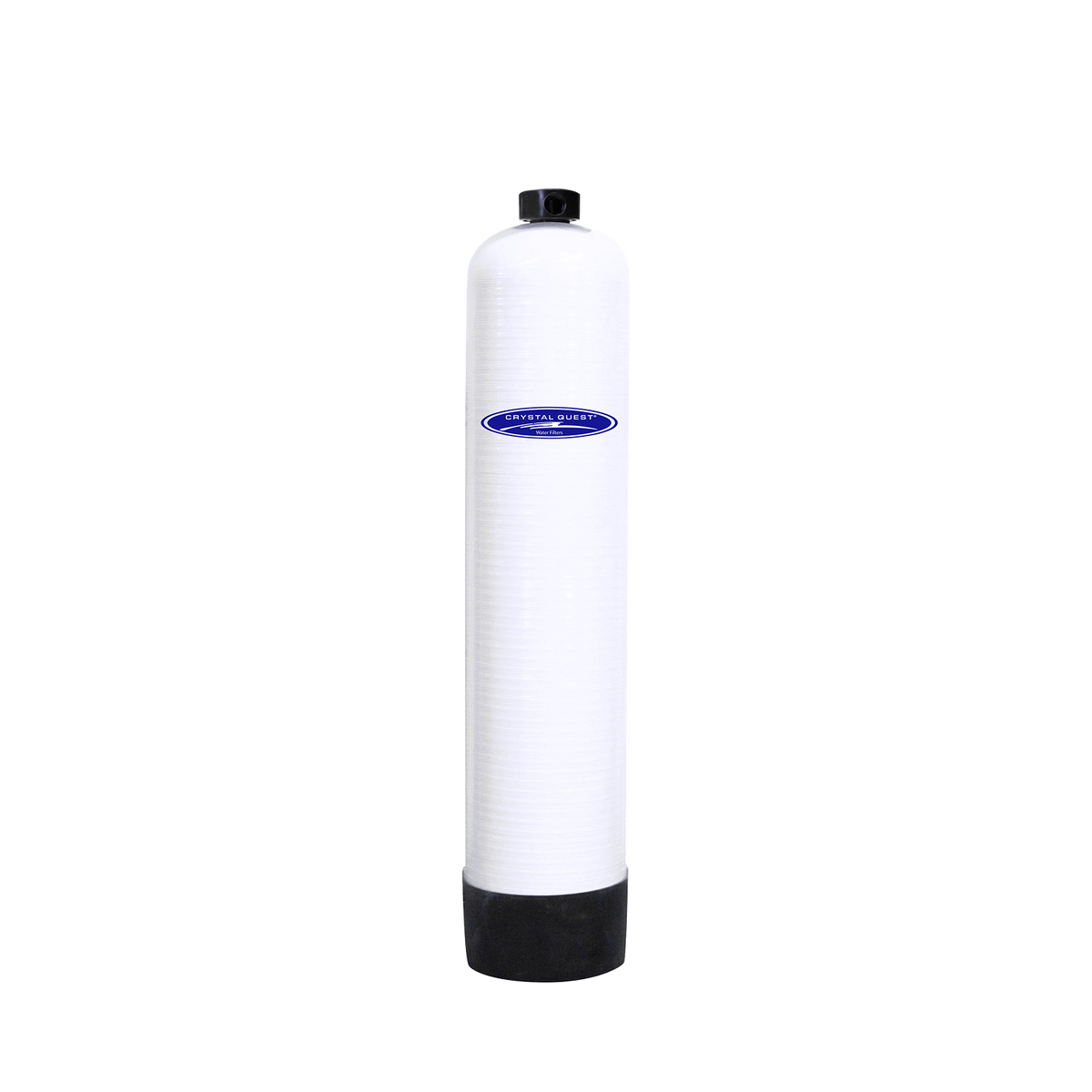

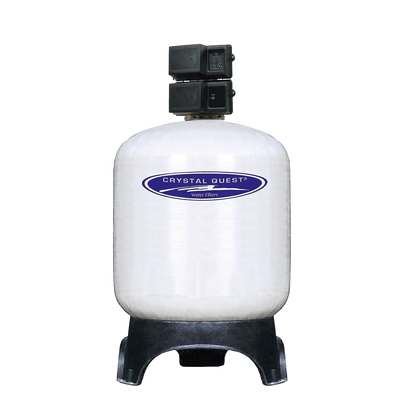

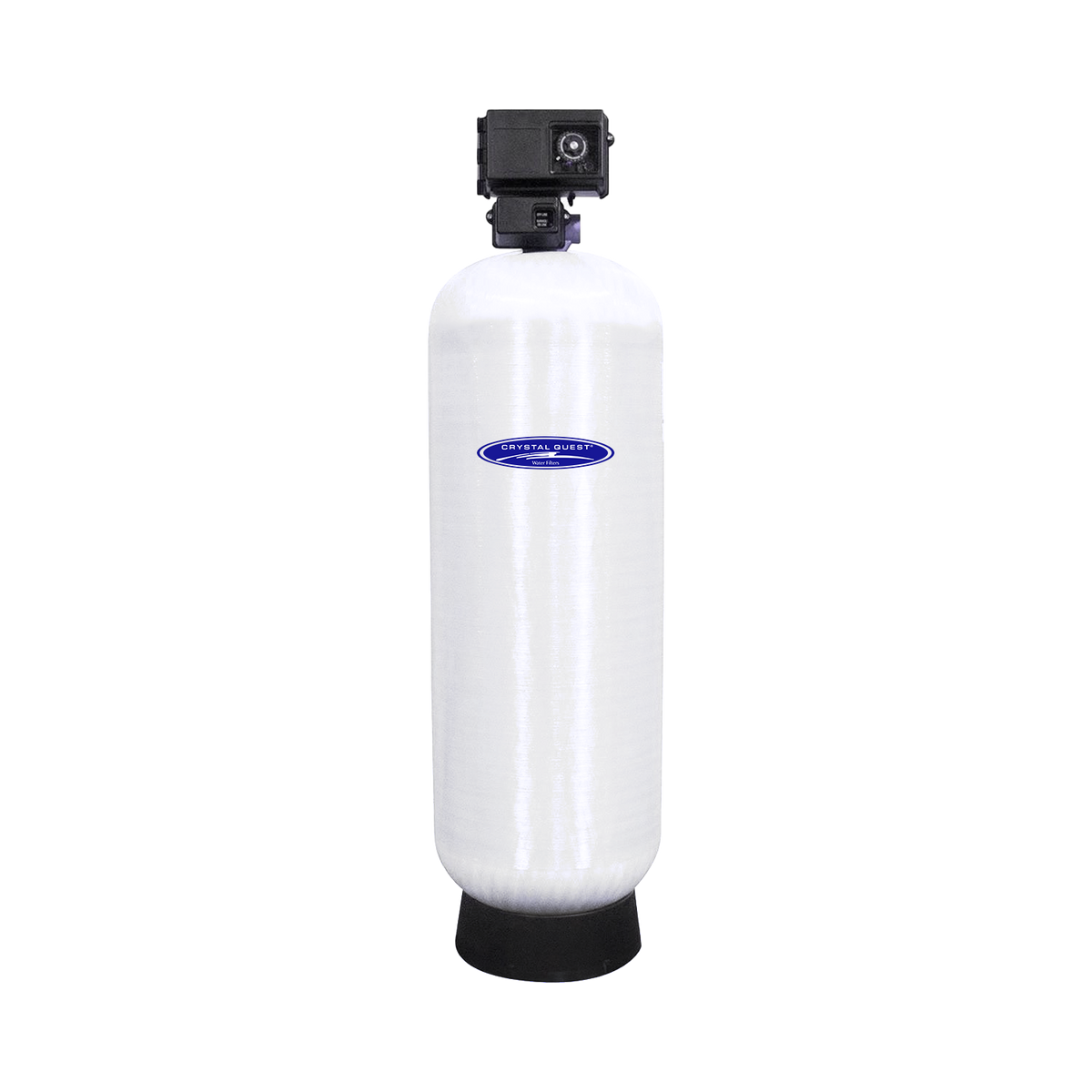

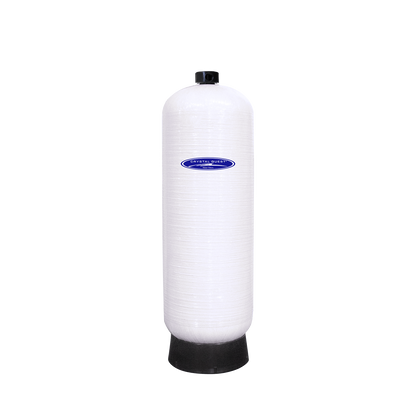

Silica Removal Water Filtration System
Silica Removal Water Filtration System
Couldn't load pickup availability
Share
Remove Silica from Your Drinking Water
Silica (SiO₂) is a naturally occurring mineral found in rocks, sand, and soil that can enter water supplies through erosion, industrial runoff, or agricultural activity. While not typically a health hazard at low levels, high concentrations of silica—especially colloidal and reactive forms—can cause scaling in pipes, damage filtration systems, and lead to aesthetic issues like glass etching. Traditional removal methods like reverse osmosis or ion exchange are often costly and not fully effective for all silica forms.
Crystal Quest® systems using Trapp XT media provide a highly efficient solution for silica removal. Made from 99.99% pure magnesium oxide, Trapp XT beads use advanced adsorption and ion exchange to capture silica, phosphates, ammonia, and heavy metals. This media also naturally raises water pH without chemicals, helping to reduce corrosion and scaling. NSF/WQA certified, Trapp XT offers a safe, chemical-free way to protect your water system and improve overall water quality.
Features
- Timer Control Valves
- Heavy duty composite fiberglass tanks
- High Flow Distributor
- All brass, motor driven control valve with fully adjustable backwash cycles
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
- Engineered for commercial & industrial use
Benefits
- Reduced water consumption
- Engineered for commercial & industrial use
- Utilizes a strongly basic hybrid anion exchange resin specially formulated to selectively remove arsenic.
- Exhibits extraordinary throughput capacity in arsenic removal service on potable water supplies. Its performance is virtually unaffected by common anions, such as chlorides, bicarbonates or sulfates. It is effective over the entire pH range of potable water.
- Made from Standard 61 validated anion exchange resin
- No arsenic dumping - effluent arsenic levels will not exceed influent levels if the resin is operated past exhaustion point
- Filtration capacity: Up to 500,000 gallons per Cu. Ft. Resin (at 50 ppb in influent with 10 ppb in effluent)
Add-Ons*
- Metered Control Valve
- Backwash bypass
- 3200NT Controller
- NXT Upgrade Controller
- Duplex parallel, twin alternating, triplex (progressive)
- Optional skid mounting for tanks
*If you are interested in our available add-ons, please call to have them added to your system.
Compatible Valves:
GPM:15
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:20 - 35
2850 Automatic Control Head
This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 1 1/2” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 60 GPM
- backwash capacity of 47 GPM
- valves use all brass material
- Fully adjustable 5-cycle control
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
2850 Automatic Control Head
This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 1 1/2” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 60 GPM
- backwash capacity of 47 GPM
- valves use all brass material
- Fully adjustable 5-cycle control
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:60 - 75
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:200 - 390
3900 Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:15 - 75
Manual Backwash Control
Features:
- easy operation
- Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain, 1.05" OD Riser, 2.5" 8-NPSM Connection
- Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection
Manual Backwash Control
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:15 - 75

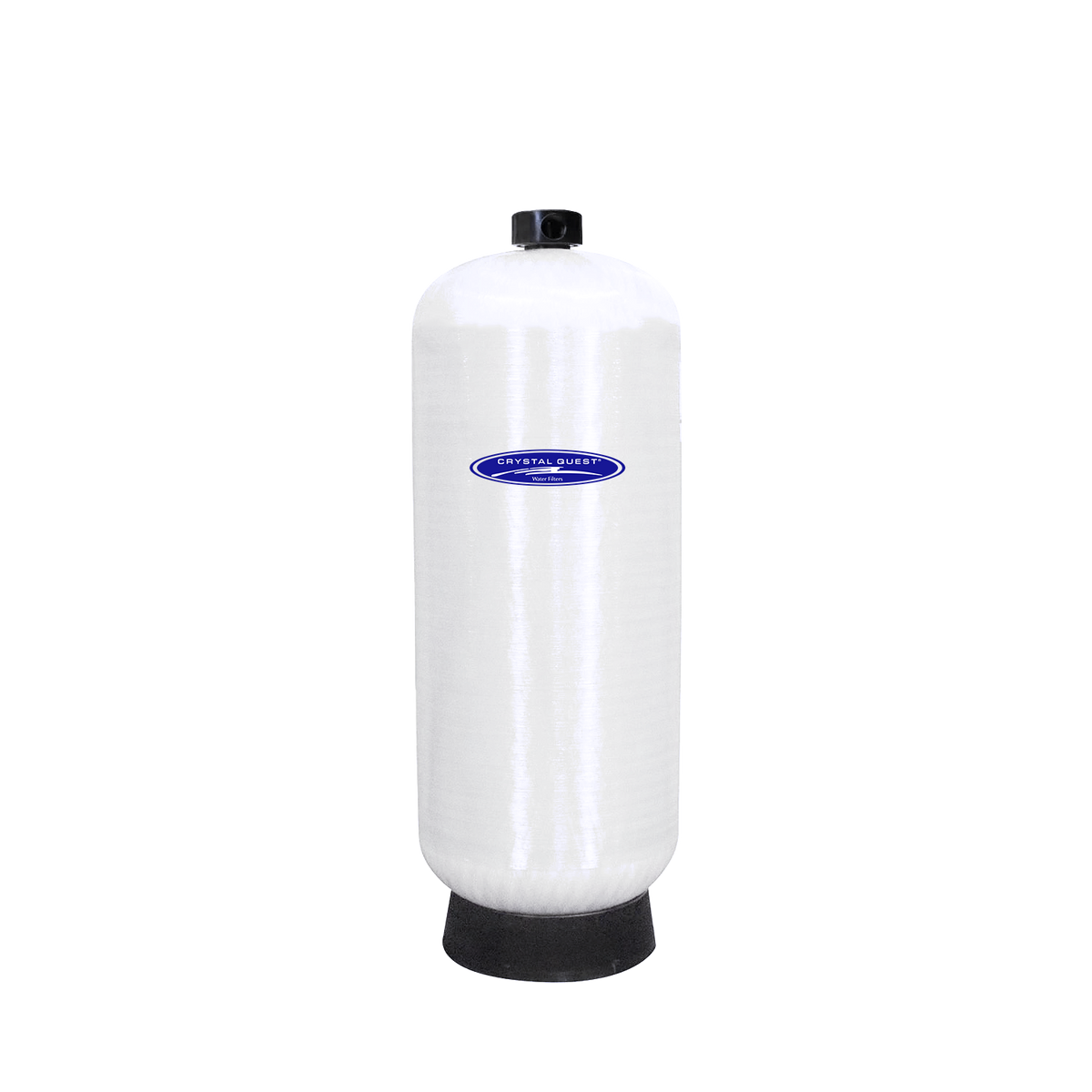

Manual Upflow Head
Features:
- No electricity and no back wash
- easy operation
- can be either up or down flow simply by plumbing it backwards
- Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
- Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
###
| Specification | CQE-CO-S3000 | CQE-CO-S3300 | CQE-CO-S3600 | CQE-CO-S3900 | CQE-CO-S4200 | CQE-CO-S4500 | CQE-CO-S4700 | CQE-CO-S4800 | CQE-CO-S4900 |
|---|---|---|---|---|---|---|---|---|---|
| Service Flow Rate GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 245 | 390 |
| Peak Flow GPM | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 280 | 450 |
| Backwash Flow GPM | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 75 |
| Pipe Size | 1" | 1.5" | 1.5" | 2" | 2" | 2" / 3" | 3" | 3" | 3" |
| Electronic Control Valve | 2510 | 2850 | 2850 | 2900 | 2900 | 3150 / 3900 | 3900 | 3900 | 3900 |
| Silica Removal Media | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 60 ft³ |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Mineral Tank Size (in.) |
14" x 65" | 16" x 65" | 21" x 62" | 24" x 72" | 30" x 72" | 36" x 72" | 42" x 72" | 48" x 72" | 63" x 83" |
| Space Required (in.) (D x H) |
16" x 75" | 18" x 75" | 23" x 84" | 24" x 95" | 32" x 95" | 40" x 192" | 46" x 192" | 52" x 192" | 67" x 203" |
| Quartz (lbs.) | 30 | 40 | 70 | 100 | 150 | 200 | 300 | 400 | 600 |
###
| Filtration Media Information |
||
|---|---|---|
| TrappXT | TrappXT Product Data Sheet | |
| ERA 6500 & 9500 | ERA 6500 & 9500 Product Data Sheet | ERA 6500 & 9500 Safety Data Sheet |
###
